About Serrated Gaskets: Precision Sealing for Demanding Applications
In the complex world of industrial sealing, where pressure, temperature, and media compatibility are constant challenges, standard flat gaskets often fall short. This is where the specialized engineering of Serrated Gaskets becomes indispensable. Also known as serrated flange gaskets or ring joint-type gaskets, these components are designed for high-integrity sealing in the most demanding environments. At Kaxite Sealing, we manufacture premium serrated gaskets that meet and exceed the rigorous standards of industries such as oil & gas, petrochemical, power generation, and heavy machinery.

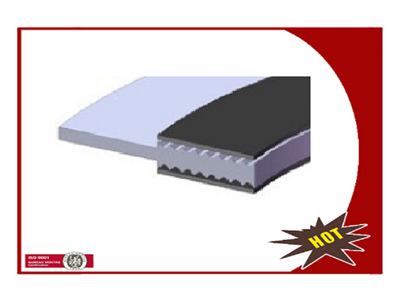

A serrated gasket features concentric grooves or serrations machined onto one or both sealing faces. These serrations bite into the flange surface with controlled deformation when compressed under high bolt load, creating multiple concentric sealing barriers. This design provides a far more reliable seal against high pressure and thermal cycling compared to smooth-surface gaskets. The grooves allow for higher surface pressure with a lower overall bolt load, reducing the risk of flange distortion while ensuring leak-tight security for hazardous or valuable fluids.
Key Features and Advantages of Kaxite Serrated Gaskets
Our serrated gaskets are engineered for superior performance. Here are the core features that set them apart:
- Concentric Serration Design: Precisely machined grooves ensure uniform bite and stress distribution across the entire sealing surface.
- High Sealability: Multiple concentric contact lines create a labyrinth seal effect, effectively blocking leakage paths.
- Excellent Pressure and Temperature Resistance: Ideal for applications involving high internal pressure, vacuum conditions, and extreme thermal cycling.
- Material Versatility: Available in a wide range of materials to suit specific media and environmental conditions.
- Reusability: When designed and installed correctly, they can often be reused, offering better long-term value.
- Reduced Flange Stress: Achieves an effective seal with lower required bolt load, minimizing flange bending.
Detailed Product Specifications and Materials
Kaxite Sealing offers a comprehensive range of serrated gaskets tailored to various standards and applications. Our products are characterized by precise engineering and strict quality control.
Standard Specifications
| Parameter | Specification / Range | Notes |
|---|---|---|
| Standards | ASME B16.20, BS 1560, DIN 2696, Custom Designs | Complies with international flange standards. |
| Nominal Sizes (NPS) | 1/2" to 60" | Standard and custom sizes available. |
| Pressure Classes | 150, 300, 400, 600, 900, 1500, 2500 | Suitable for a full range of pressure ratings. |
| Serrations per Inch (SPI) | 4, 6, 8, 12, 16, 24, 32 | Finer serrations for higher pressures. |
| Serrations Pattern | Concentric, Spiral (Optional) | Concentric is standard for most applications. |
| Surface Finish (Ra) | 3.2 - 6.3 μm (125 - 250 μin) | Optimal for bite-in and seal integrity. |
Available Materials
Material selection is critical for chemical compatibility and temperature resistance. Our standard offerings include:
| Material Grade | Common Designation | Max Temp. (°C / °F) | Primary Applications / Media |
|---|---|---|---|
| Soft Iron | SAE 1006/1008 | 540°C / 1000°F | Steam, oil, gas, general service. |
| Low Carbon Steel | AISI 1020/1021 | 540°C / 1000°F | High-pressure steam, hydrocarbons. |
| Stainless Steel 304/304L | AISI 304, UNS S30400 | 800°C / 1470°F | Corrosive environments, food, pharma. |
| Stainless Steel 316/316L | AISI 316, UNS S31600 | 800°C / 1470°F | Superior chloride resistance, chemical plants. |
| Monel 400 | UNS N04400 | 540°C / 1000°F | Marine, hydrofluoric acid, caustic solutions. |
| Inconel 600 | UNS N06600 | 1095°C / 2000°F | High-temperature furnaces, thermal processing. |
| Copper | C11000 | 260°C / 500°F | Fuel lines, water services, heat exchangers. | Aluminum | 6061-T6 | 425°C / 800°F | Cryogenics, low-temperature applications. |
Frequently Asked Questions (FAQ) About Serrated Gaskets
Q: What is the fundamental sealing principle of a serrated gasket?
A: The sealing action relies on "controlled surface deformation." When the flanges are bolted together, the sharp peaks of the serrations plastically deform and embed themselves into the opposing flange surface. This creates multiple continuous, concentric metal-to-metal contact rings. These rings act as individual barriers, significantly increasing the path any fluid must take to leak, resulting in a highly effective seal, especially under high pressure and thermal cycling conditions.
Q: When should I choose a serrated gasket over a spiral wound or a flat metal gasket?
A: Serrated gaskets are ideal for high-pressure, high-temperature applications with rigid, smooth flanges. Choose them over standard flat gaskets when you need higher sealing reliability and reusability. Compared to spiral wound gaskets, serrated metal gaskets are often preferred for smaller flange sizes, higher pressure classes, and services involving rapid thermal transients or where gasket blow-out is a concern, as they are a solid metal ring. Kaxite Sealing experts can help you make the correct selection.
Q: How do I select the correct serrations per inch (SPI) for my application?
A: SPI selection is based on flange material, hardness, surface finish, and required sealing pressure. A general guideline: Use lower SPI (e.g., 4-8) for softer flange materials (aluminum, soft steel) to prevent excessive biting and damage. Use higher SPI (e.g., 16-32) for harder flange materials (hardened steel, stainless steel) to achieve sufficient bite and surface pressure. The flange surface finish should be smoother for higher SPI. Consulting Kaxite Sealing's technical data sheets is crucial for optimal selection.
Q: Can serrated gaskets be reused?
A: Reuse is possible but must be approached with caution. A serrated gasket can often be reused if it has not been over-compressed, shows no signs of cracks or deep corrosion, and the serrations are still well-defined. It is critical to inspect both the gasket and the flange grooves for damage. For critical services, replacement is always the safest practice. Kaxite Sealing recommends inspection per ASME PCC-1 guidelines when considering reuse.
Q: What flange surface finish is required for a serrated gasket to perform correctly?
A: An optimal flange surface finish is vital. Typically, a finish between 3.2 μm and 6.3 μm Ra (125 to 250 microinches) is recommended. The finish should be smooth but not polished; a slight tooling pattern helps the serrations bite effectively. Flanges that are too rough can prevent proper seating, while overly smooth finishes may not allow adequate bite, leading to potential leakage.
Q: What are the typical torque or bolt load requirements for installing a serrated gasket?
A: Installation torque is higher than for non-metallic gaskets but generally lower than for solid flat metal rings of the same size. The goal is to achieve sufficient compression for the serrations to embed without over-stressing the flange or bolts. Torque values depend on gasket material, size, pressure class, and bolt specifications. Calculations should follow standards like ASME PCC-1. Kaxite Sealing provides detailed installation guidelines with our products to ensure a proper, leak-free seal.
Q: Are Kaxite serrated gaskets suitable for corrosive services?
A: Yes, when the correct material is selected. While soft iron or low-carbon steel is standard for general service, we offer a wide range of corrosion-resistant alloys (CRA) like Stainless Steel 316, Duplex Steel, Monel, Inconel, and Hastelloy. Material selection must be based on a thorough analysis of the process media, concentration, temperature, and potential for galvanic corrosion between the gasket and flange materials. Our technical team can assist with material compatibility analysis.
Applications of Serrated Gaskets
The robust and reliable nature of serrated gaskets makes them the go-to choice for numerous critical sealing points across heavy industries:
- Oil & Gas: Wellheads, Christmas trees, manifold systems, pipeline flanges, compressor stations, and high-pressure vessels.
- Petrochemical & Chemical: Reactors, autoclaves, high-pressure heat exchangers, catalyst injection lines, and corrosive service flanges.
- Power Generation: Steam turbine flanges, boiler feedwater systems, high-pressure steam lines (main and reheat), and valve bonnets.
- Aerospace & Defense: Hydraulic systems, fuel systems, and test rigs requiring high-integrity, reusable seals.
- Heavy Machinery: High-pressure hydraulic presses, cylinder heads, and large-diameter bearing housings.
