The Ultimate Guide to High-Performance Aramid Fiber Packing

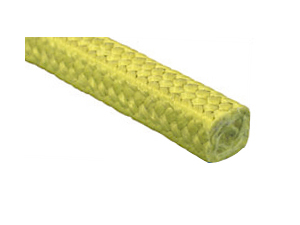

What is Aramid Fiber Packing?
In the demanding world of industrial sealing, where extreme pressures, temperatures, and aggressive chemicals are commonplace, traditional packing materials often fall short. This is where aramid fiber packing, a premium class of mechanical sealing solution, excels. Engineered from synthetic aramid polymers, most notably known under brands like Kevlar® and Twaron®, this packing offers an unparalleled combination of strength, resilience, and thermal stability. Unlike generic packing, Aramid fiber packing is specifically designed to handle the most severe service conditions, providing reliability and longevity that directly impacts operational efficiency and safety. At Kaxite Sealing, we have refined this technology into a range of high-grade sealing products that set the industry standard.
Kaxite Sealing's aramid fiber packing incorporates advanced lubrication and finishing techniques, ensuring not just superior performance but also easier installation and reduced break-in time for rotating equipment like pumps, mixers, and valves.
Key Features & Advantages of Kaxite Sealing Aramid Packing
- Exceptional Tensile Strength: Possesses strength-to-weight ratios far superior to steel, resisting blow-out and extrusion under high pressure.
- Outstanding Thermal Resistance: Operates continuously in temperatures ranging from -100°F to 500°F (-73°C to 260°C), with short-term peaks even higher.
- Excellent Chemical Compatibility: Highly resistant to a wide spectrum of chemicals, including solvents, hydrocarbons, and mild acids/alkalis.
- Low Coefficient of Friction: Inherently lubricious fibers reduce heat generation and shaft sleeve wear, extending equipment life.
- Non-Abrasive to Shafts/Sleeves: Unlike some hard reinforcements, aramid fibers are gentle on expensive equipment components.
- Flexible and Conformable: Adapts well to gland spaces and minor shaft runout, creating an effective seal.
- Zero Asbestos Content: A safe, modern sealing material meeting all international health and safety regulations.
Technical Specifications & Product Data
The performance of aramid packing is defined by its precise specifications. Below are the standard parameters for Kaxite Sealing's premium aramid fiber braided packing. Custom formulations are available for specific applications.
| Parameter | Specification / Value | Test Method / Notes |
|---|---|---|
| Material Composition | High-purity Aramid Fibers (Type 1 or Type 2), Impregnated with PTFE & Specialized Lubricants | Core: 100% Aramid, Finish: Proprietary Kaxite Blend |
| Temperature Range | -100°F to +500°F (-73°C to +260°C) | Continuous Operating Range |
| pH Range | 2 - 12 | For prolonged exposure; resistant to most media within this range |
| Density | 85 - 95 lbs/ft³ (1.36 - 1.52 g/cm³) | ASTM D3775 |
| Tensile Strength | > 25,000 psi (172 MPa) | ASTM D2256 |
| Chemical Compatibility | Excellent in: Hot Oils, Steam, Acids, Alkalis, Solvents, Hydraulic Fluids, Sea Water. Poor in: Strong Acids & Bases (e.g., Conc. Sulfuric Acid). | Compatibility charts available for detailed media review. |
| Rotational Speed | Up to 25 m/s (82 ft/sec) | Dependent on shaft finish and sealing system design |
| Pressure | Up to 2500 psi (172 bar) for rotating; up to 5000 psi (345 bar) for static/stem | Valve stem service typically allows for higher pressures |
| Available Sizes | Standard Square & Round Sections: 1/8" to 1" (3mm to 25mm). Coils, spools, or pre-formed rings. | Custom sizes and die-formed sets available on request. |
Standard Product Line Overview
| Product Code | Description | Core Construction | Primary Lubricant/Finish | Best Suited For |
|---|---|---|---|---|
| KX-AF100 | Economy Grade Aramid Packing | Braided Aramid Yarn | PTFE & Graphite Paste | General service water, low-pressure steam, mild chemicals. |
| KX-AF200 | Standard Duty Aramid Packing | Braided Aramid & Inconel Wire | High-Purity PTFE Impregnation | Hot oils, acids, alkalis, moderate pressure/temperature pumps. |
| KX-AF300 | Premium Duty Aramid Packing | Densified Braided Aramid Core | PTFE, Molybdenum Disulfide, & Special Additives | High-speed pumps, aggressive chemicals, high-pressure valves, severe service. |
| KX-AF400 | Corrosion-Resistant Aramid Packing | Pure Aramid with Corrosion-Inhibiting Wire | Advanced Polymer Lubricant Blend | Extremely corrosive environments, chlor-alkali industry, offshore applications. |
Frequently Asked Questions (FAQ) about Aramid Fiber Packing
Q: What are the main applications for aramid fiber packing?
A: Aramid fiber packing is versatile and used across numerous industries. Common applications include sealing centrifugal and rotary pumps handling hot water, chemicals, hydrocarbons, and slurries; valve stems in refineries and chemical plants; mixers and agitators; expansion joints; and as a replacement for asbestos-based packing in legacy equipment. Its robustness makes it ideal for the power generation, chemical processing, oil & gas, marine, and pulp & paper sectors.
Q: How does Kaxite Sealing's aramid packing compare to graphite or PTFE packing?
A: Each material has its niche. Graphite packing excels in extremely high temperatures and is highly chemically inert but can be more brittle and requires careful handling. Pure PTFE packing offers superb chemical resistance but has lower mechanical strength and a lower maximum temperature rating. Kaxite's aramid fiber packing sits between them, offering a superior balance: much higher tensile strength and abrasion resistance than PTFE, better flexibility and lower break-in friction than pure graphite, and excellent performance across a broad temperature and chemical range. It is often the best all-around choice for demanding, dynamic sealing.
Q: Is aramid packing difficult to install and run-in?
A: No, one of its key advantages is relative ease of installation. Kaxite Sealing's packing is supple and conforms easily. The recommended procedure is to cut rings on a clean, square surface, stagger the joints by 90 degrees, and tighten the gland follower gradually and evenly. During run-in, it requires a standard break-in period with periodic re-tightening as the packing seats and the initial lubricant adjusts. Following our provided installation guide ensures optimal performance and lifespan.
Q: Can aramid fiber packing be used on drinking water or food processing equipment?
A: Standard aramid packing is not typically certified for direct food or potable water contact. However, Kaxite Sealing offers specialized grades (upon inquiry) that use FDA-compliant lubricants and processing aids suitable for incidental contact in specific food and beverage applications. It is crucial to specify this requirement when ordering to receive the correct, compliant product.
Q: How long does aramid packing typically last in service?
A: Service life varies dramatically based on the application: fluid type, temperature, pressure, shaft speed, surface finish, and installation quality. In a well-maintained, moderate-duty pump, Kaxite aramid packing can last 12-24 months or more of continuous operation. In severe service, life may be 3-6 months. Proper gland adjustment and cooling/flush water (if specified) are critical to maximizing packing life. It consistently outperforms many generic braided packings, reducing downtime and maintenance costs.
Q: Does Kaxite Sealing offer custom-engineered aramid packing solutions?
A: Absolutely. Our core expertise at Kaxite Sealing lies in engineering sealing solutions for unique challenges. We can customize aramid packing by adjusting the fiber blend, incorporating different types of reinforcing wires (e.g., Inconel, Monel, 316SS), using proprietary lubricant impregnations for specific fluids, and creating non-standard sizes or die-molded shapes. Contact our engineering team with your application parameters for a tailored solution.
Choosing the Right Aramid Fiber Packing for Your Application
Selecting the correct grade is paramount. For general service, the KX-AF100 or KX-AF200 series are excellent starting points. When facing high shaft speeds, significant pressure, or aggressive chemicals, the premium KX-AF300 is recommended. For environments with high chloride content or severe corrosion, the KX-AF400 series provides enhanced protection. Always cross-reference the chemical compatibility of your process fluid with our technical data sheets. The team at Kaxite Sealing is always available to provide application-specific guidance to ensure you select a packing that delivers maximum reliability and value.
