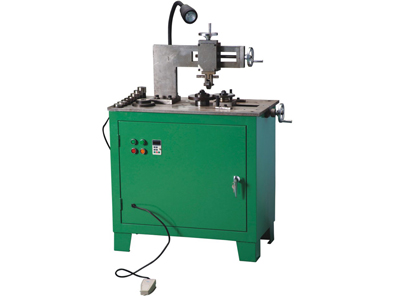

In demanding industrial environments where extreme pressures, temperatures, and aggressive media are the norm, standard gaskets often fall short. This is where double jacketed gaskets become the critical sealing solution. Precision-engineered for maximum reliability, these gaskets require specialized, high-precision equipment for their manufacture. The dedicated Machine for Double Jacketed Gaskets is not just a piece of industrial machinery; it is the cornerstone of producing seals that ensure safety, prevent leaks, and maintain operational integrity in the most challenging applications. At Kaxite Sealing, we have refined the technology behind these machines, integrating decades of sealing expertise into robust, automated systems designed for excellence.
A Machine for Double Jacketed Gaskets automates the complex process of forming a metal jacket (typically stainless steel 304/316, carbon steel, or exotic alloys) tightly over a soft, compressible filler material (often PTFE, graphite, or ceramic). This creates a gasket with the perfect marriage of properties: the resilience and sealing capability of the filler, combined with the structural strength and blow-out resistance of the metal armor. The precision of the forming process directly impacts the gasket's performance in flanged connections for pipelines, pressure vessels, heat exchangers, and reactors in industries like oil & gas, chemical processing, pharmaceuticals, and power generation.
Our machines are engineered with a focus on precision, durability, and user-friendly operation. Below is a detailed breakdown of the core parameters that define their performance and capability.
| Parameter | KX-DJG-300 | KX-DJG-600 | KX-DJG-1200 |
|---|---|---|---|
| Max. Jacket OD (Outside Diameter) | 600 mm | 1200 mm | 2000 mm |
| Min. Jacket ID (Inside Diameter) | 50 mm | 75 mm | 100 mm |
| Max. Metal Thickness | 1.5 mm | 2.5 mm | 3.5 mm |
| Standard Tooling Material | Hardened Tool Steel (HRC 58-62), Chrome-plated options for anti-adhesion. | ||
| Typical Cycle Time (for a 300mm OD gasket) | 45-60 seconds | 60-75 seconds | 75-90 seconds |
| Repeatability Accuracy | ±0.05 mm on critical jacket dimensions. | ||
What is the primary advantage of using a dedicated machine over manual forming methods?
The primary advantage is consistent, high-quality production. Manual forming is highly skill-dependent, leading to inconsistencies in jacket tightness, filler compression, and final dimensions. A dedicated machine from Kaxite Sealing applies precise, repeatable force and follows exact forming sequences. This eliminates human error, ensures every gasket meets the same high standard, dramatically reduces scrap rates, and significantly increases production throughput. The result is reliable gaskets that perform predictably in service.
What types of metal jackets can your machine form?
Our machines are designed to handle a wide range of ductile metals commonly used in jacketed gaskets. This includes standard grades like Stainless Steel 304 and 316L, Carbon Steel, and Copper. With proper tooling adjustments and programming, they can also form more exotic alloys such as Monel, Inconel, Hastelloy, and Titanium. The key is the material's ductility and the machine's ability to apply controlled, gradual force to shape the metal without causing cracks or excessive work-hardening.
How do I select the right machine model (300, 600, or 1200 kN) for my production needs?
Selection depends on two main factors: the size (diameter) and the metal thickness of the gaskets you intend to produce. The KX-DJG-300 is ideal for smaller, standard-duty gaskets up to 600mm OD. The KX-DJG-600 is the most versatile model, handling the majority of industrial applications up to 1200mm OD. The KX-DJG-1200 is for heavy-duty, large-diameter gaskets used in major pipeline or vessel flanges. A Kaxite Sealing engineer can perform a detailed analysis of your part drawings to recommend the optimal model.
What is the typical lead time for delivery and installation?
For standard models, the lead time is typically 10-12 weeks from order confirmation to ex-works delivery. This includes manufacturing, assembly, and comprehensive factory testing. Installation and commissioning by a Kaxite Sealing technician usually require 3-5 days on-site, depending on foundation preparation and utility hookups. We provide detailed site preparation guidelines well in advance to ensure a smooth installation process.
Does Kaxite Sealing provide training and ongoing technical support?
Yes, comprehensive training is a standard part of our offering. We provide detailed operational training for your machine operators and maintenance personnel during commissioning. This covers daily operation, basic troubleshooting, routine maintenance, and tooling changeover procedures. Furthermore, Kaxite Sealing offers ongoing technical support via phone, email, and remote diagnostics. We also stock a full range of wear parts and provide annual preventive maintenance service contracts to ensure your machine's long-term reliability and productivity.
Can the machine be customized for specific or unique gasket designs?
Absolutely. While our standard machines cover over 90% of double jacketed gasket designs, we specialize in engineering custom solutions. Customizations can include specialized tooling for non-standard profiles (e.g., oval, square-with-rounded-corners), integrated vision systems for automatic inspection, custom material handling feeds, or integration into a fully automated production line. Our engineering team works directly with clients to develop solutions for proprietary or complex gasket geometries.
Choosing a Machine for Double Jacketed Gaskets from Kaxite Sealing means investing in more than hardware; it's a partnership for superior sealing component manufacturing. Our machines embody a deep understanding of the metallurgy and mechanics involved in creating a perfect seal. From the rigidity of the frame that prevents energy loss to the intelligent PLC that stores perfect forming parameters, every detail is optimized. We use only premium-grade components for hydraulics, guides, and controls, ensuring low lifetime operating costs and minimal downtime. This commitment to quality ensures that the gaskets produced on our equipment uphold the integrity of critical industrial processes worldwide, reflecting the reliability that the Kaxite Sealing brand represents.
