In the demanding world of industrial sealing, where pressure, temperature, and corrosive media converge, standard gaskets often reach their limits. This is where the engineered superiority of Double Jacket Gaskets becomes indispensable. As a cornerstone of reliable sealing technology, these gaskets are specifically designed to handle extreme conditions that would compromise other sealing solutions. At Kaxite Sealing, with decades of specialization in high-performance sealing products, we have refined the design and manufacturing of Double Jacket Gaskets to offer unparalleled safety and longevity in critical applications. This guide delves into the technical specifications, operational benefits, and ideal use cases for these robust sealing components.

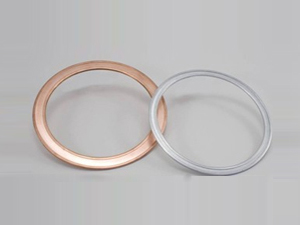

The fundamental construction of a Double Jacket Gasket is what grants its exceptional properties. It consists of a soft, compressible filler material, typically non-asbestos sheets (such as aramid fiber, glass fiber, or elastomeric binders), which is fully enclosed and protected by two metallic jackets. These jackets, usually made from stainless steel (304, 316), carbon steel, or other alloys like Monel, are precision-folded over the filler core. This dual-layer metallic armor provides a formidable barrier against internal pressure, prevents extrusion of the filler material, and offers excellent resistance to temperature fluctuations and corrosive attack. The result is a gasket that maintains a tight, leak-free seal under high bolt loads and in challenging environments common in oil & gas, chemical processing, power generation, and refinery operations.
Choosing Kaxite Sealing Double Jacket Gaskets brings a suite of engineered advantages to your operation:
The performance of a Double Jacket Gasket is determined by its precise construction and material selection. Below are the detailed specifications for standard Kaxite Sealing Double Jacket Gaskets.
| Metallic Jacket Material | Common Filler Material | Primary Application/Resistance | Approx. Temp. Range (°C) | Max. Pressure (Bar) |
|---|---|---|---|---|
| 304 Stainless Steel | Non-Asbestos (Aramid/Graphite) | General purpose, steam, mild chemicals | -100 to 500 | Up to 200 |
| 316 Stainless Steel | PTFE Impregnated Non-Asbestos | Strong acids, chlorides, caustic services | -200 to 260 | Up to 150 |
| Carbon Steel | Graphite/Ceramic Fiber | High-temperature hydrocarbon, steam lines | Up to 600 | Up to 250 |
| Monel | Flexible Graphite | Marine, HF acid, alkaline solutions | -150 to 650 | Up to 200 |
| Hastelloy C-276 | Flexible Graphite | Severe oxidizing & reducing environments | -150 to 800 | Up to 200 |
Kaxite Sealing Double Jacket Gaskets are manufactured to precise standards. Standard sizes conform to ANSI/ASME B16.5, B16.47, and DIN flanges. Custom sizes are available upon request.
| Nominal Pipe Size (NPS) | Flange Class (ANSI) | Inner Diameter (ID) mm | Outer Diameter (OD) mm | Thickness (T) mm (Typical) |
|---|---|---|---|---|
| 1/2" to 24" | 150, 300, 600 | As per flange bore | As per flange OD | 3.0 - 4.5 |
| 26" to 60" | 150, 300 | As per flange bore | As per flange OD | 4.5 - 6.0 |
Q: What is the main difference between a Double Jacket Gasket and a Spiral Wound Gasket?
A: While both are used for medium to high-pressure applications, their construction differs fundamentally. A Spiral Wound Gasket is made by spirally winding a pre-formed metal strip and a filler material. A Double Jacket Gasket features a solid ring of soft filler material fully encapsulated by two separate metallic jackets folded over it. Double jacket gaskets generally offer better extrusion resistance in low bolt load situations and can be more cost-effective for certain standard sizes and pressures.
Q: When should I choose a Double Jacket Gasket over other types like RTJ or Camprofile?
A: Double Jacket Gaskets are an excellent choice for standard raised face (RF) flanges across a broad range of pressures (Class 150 to 600 are most common). They are easier to install and require less bolt load than a Ring Type Joint (RTJ) gasket. Compared to a Camprofile (Grooved Metal) gasket with a soft facing, double jacket gaskets often provide a more robust physical barrier against filler extrusion and are suitable for a wider temperature range with various filler options.
Q: Can Kaxite Sealing Double Jacket Gaskets be used in sour service (H2S) environments?
A: Yes, provided the materials are correctly specified. For sour service as per NACE MR0175/ISO 15156, the metallic jacket material must be selected for sulfide stress cracking resistance (e.g., certain grades of stainless steel). The filler, typically flexible graphite or PTFE-based materials, must also be compatible. It is crucial to inform Kaxite Sealing of your specific service conditions for a certified recommendation.
Q: How do I determine the correct material combination for my application?
A: Material selection depends on three primary factors: the chemical composition of the media being sealed, the continuous operating temperature, and the system pressure. You should also consider potential for thermal cycling, pH levels, and presence of oxidizers. Consulting the chemical compatibility charts for the filler and the corrosion resistance charts for the metal jacket is essential. Kaxite Sealing's technical team can assist with this critical selection process based on your complete application data sheet.
Q: Are these gaskets reusable?
A: Double Jacket Gaskets can sometimes be reused if they have been carefully installed, not overtightened, and removed without damage. However, reuse is generally not recommended for critical service applications or if the gasket shows any signs of compression set, jacket distortion, or filler degradation. Always perform a thorough visual inspection and consult engineering guidelines before considering reuse. For optimal safety and performance, Kaxite Sealing recommends using a new gasket for each assembly.
Q: What is the proper installation torque for a Double Jacket Gasket?
A: There is no single universal torque value. The correct bolt load is calculated based on the gasket's required sealing stress (yield stress), the flange rating, bolt size and grade, and the use of lubrication. It is imperative to follow a recognized flange assembly procedure such as ASME PCC-1 or EN 1591. Under-torquing can lead to leakage, while over-torquing can crush the filler, damage the jacket, or even warp the flanges. Always use a calibrated torque wrench and follow a cross-bolting pattern.
Q: Does Kaxite Sealing offer custom-designed Double Jacket Gaskets?
A: Absolutely. While we stock a wide range of standard sizes and materials, Kaxite Sealing specializes in engineering custom sealing solutions. We can manufacture Double Jacket Gaskets to non-standard IDs/ODs/thicknesses, with special jacket materials (like Titanium, Inconel), and with proprietary filler blends to meet unique chemical, temperature, or pressure requirements. Provide us with your specifications and drawings for a prompt quotation.
The robustness and versatility of Double Jacket Gaskets make them a preferred choice in numerous sectors where leak-free integrity is non-negotiable.
Selecting Kaxite Sealing means more than just purchasing a gasket; it means investing in reliability backed by deep engineering expertise. Our manufacturing process employs state-of-the-art precision folding and forming equipment to ensure consistent jacket integrity and filler placement. Every batch of material is traceable, and our quality assurance system meets rigorous international standards. We provide full technical support, from material selection and application review to installation guidance, ensuring our Double Jacket Gaskets perform as specified in your most critical operations. Trust Kaxite Sealing to deliver the sealing security that your processes demand.
