High-Performance PTFE Gaskets Manufacturer in China for Industrial Applications

PTFE Gaskets, also known as Teflon gaskets, represent a pinnacle of sealing technology, offering unparalleled chemical resistance and thermal stability. At Kaxite Sealing, we specialize in engineering high-performance PTFE gaskets designed to meet the rigorous demands of modern industry. Our products are manufactured from premium polytetrafluoroethylene materials, ensuring a leak-free seal in applications where failure is not an option. Whether you're operating in chemical processing, pharmaceuticals, food and beverage, or semiconductor manufacturing, Kaxite Sealing provides the reliable sealing solutions you need.

The core advantage of PTFE lies in its inert molecular structure. This structure grants it exceptional properties that traditional elastomeric gaskets cannot match. These properties form the foundation of our product design and performance guarantees at Kaxite Sealing.

Key Properties of PTFE Material

• Exceptional Chemical Resistance: PTFE is virtually inert, resisting attack from nearly all industrial chemicals, solvents, and acids, including aggressive media like hydrofluoric acid and chlorine.
• Wide Temperature Range: Kaxite PTFE gaskets perform consistently across a broad temperature spectrum, from cryogenic applications as low as -200°C (-328°F) up to +260°C (+500°F) continuously.
• Excellent Anti-Stick Properties: The non-stick nature of PTFE prevents adhesion of process media, making it ideal for applications involving viscous or sticky substances and ensuring easy clean-up and maintenance.
• Low Coefficient of Friction: This property minimizes wear and allows for smooth assembly and disassembly of flanged connections.
• Outstanding Dielectric Properties: PTFE is an excellent electrical insulator, making it suitable for applications in electrical and electronic industries.
• FDA Compliance & USP Class VI: Specific grades of PTFE used by Kaxite Sealing are compliant with FDA regulations for food contact and meet USP Class VI standards for biocompatibility, essential for pharmaceutical and food processing.

Comprehensive Product Range and Specifications at Kaxite Sealing

Kaxite Sealing offers a diverse portfolio of PTFE gaskets to suit various pressure ratings, flange types, and application requirements. Our standard offerings include:

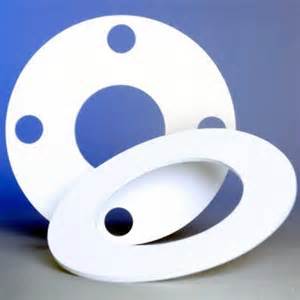

• Virgin PTFE Gaskets: Made from 100% pure PTFE, offering the highest level of chemical purity and performance. Ideal for ultra-pure processes in semiconductor or pharmaceutical industries.

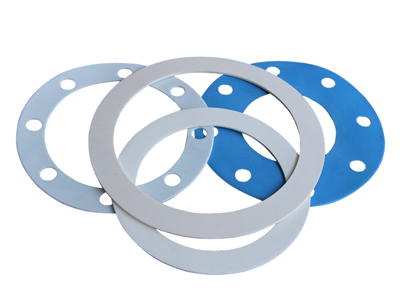

• Reinforced PTFE Gaskets (e.g., Glass Filled, Carbon Filled): These gaskets incorporate fillers like glass fiber or carbon to improve mechanical properties such as creep resistance and compressive strength, allowing for higher bolt loads and better sealing under high pressure.

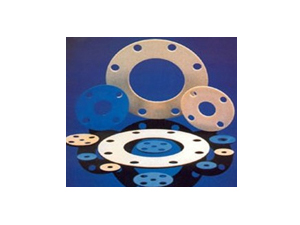

• Expanded PTFE (ePTFE) Gaskets: A soft, highly conformable form of PTFE that creates an excellent seal on uneven or imperfect flange surfaces. Kaxite's ePTFE gaskets are known for their superior scalability and low stress relaxation.
• PTFE Envelope Gaskets: Feature a corrosive-resistant PTFE envelope (jacket) over an inner core of a more compressible material (like rubber or compressed non-asbestos). This design provides the chemical resistance of PTFE with the resiliency of the core material.
• PTFE Coated Gaskets: A cost-effective solution where a thin layer of PTFE is bonded to a substrate (such as rubber or metal), providing surface chemical resistance for less demanding environments.
• Custom-Engineered PTFE Gaskets: Kaxite's engineering team can design and manufacture gaskets in custom shapes, sizes, and with specific material formulations to address unique application challenges.

To ensure you select the correct gasket for your application, it is crucial to understand the technical specifications. Below is a detailed table outlining the typical physical and mechanical properties of Kaxite Sealing's standard Virgin PTFE gasket material.

Table 1: Typical Properties of Kaxite Sealing Virgin PTFE Gasket Material

For applications requiring enhanced mechanical performance, Kaxite Sealing's reinforced PTFE materials offer superior characteristics, as shown in the comparative table below.

Table 2: Comparison of Kaxite PTFE Material Types

*Pressure ratings are system-dependent; consult Kaxite engineering.

Installation Guidelines for Optimal Performance

Proper installation is critical to achieving a leak-free seal and maximizing the service life of your PTFE gasket. Follow these key steps:

1. Flange Inspection: Ensure both flange faces are clean, undamaged, and free of old gasket material, rust, or burrs. The surface finish should be between 125 and 500 µin Ra for optimal performance.
2. Gasket Selection: Verify you have the correct Kaxite Sealing gasket material, type, and size for your specific service conditions (temperature, pressure, media).
3. Alignment: Carefully align the flanges and insert the gasket without dragging or twisting it.
4. Bolt Preparation: Clean, lubricate (with an appropriate anti-seize compound), and install all bolts by hand.
5. Torquing Procedure: Use a calibrated torque wrench. Follow a cross-bolt tightening pattern (star pattern). Tighten in multiple incremental stages (e.g., 30%, 60%, 100% of final torque) to ensure even compression across the entire gasket face. Refer to industry standards like ASME PCC-1 or our technical datasheets for specific torque values.
6. Re-torquing: For critical applications, a re-torque may be necessary after 24 hours of operation or after the first heat cycle, as some stress relaxation can occur.

Frequently Asked Questions (FAQ) About PTFE Gaskets

What are the main limitations of PTFE gaskets?

The primary limitations are cold flow (creep) under constant load and a relatively high coefficient of thermal expansion. Under sustained high bolt loads, virgin PTFE can deform over time, potentially leading to a loss of sealing force. This is why for high-pressure applications, Kaxite Sealing often recommends reinforced PTFE (with glass or carbon) or controlled compression designs like envelope gaskets, which are less prone to creep.

Can PTFE gaskets be used for steam service?

Yes, PTFE gaskets are suitable for saturated steam service within their temperature limits. Virgin PTFE can handle temperatures up to 260°C (500°F), which covers many saturated steam applications. However, for superheated steam at higher temperatures, alternative materials like flexible graphite may be more appropriate. Always consult Kaxite Sealing's technical team with your specific steam pressure and temperature.

How do I choose between Virgin PTFE and Reinforced PTFE (RPTFE)?

The choice hinges on your application's priorities. Choose Virgin PTFE when you require maximum chemical purity and resistance, such as in pharmaceutical or food-grade applications. Opt for Reinforced PTFE (like glass-filled) when you need higher mechanical strength, better resistance to cold flow (creep), and the ability to withstand higher bolt loads and pressures in aggressive chemical environments.

Are PTFE gaskets reusable?

Generally, PTFE gaskets are not recommended for reuse. During installation, the material compresses and conforms to the specific flange surface imperfections. Reusing a gasket can compromise the seal integrity because the material has already undergone permanent deformation (cold flow) and may not properly re-seal. Kaxite Sealing always recommends using a new gasket for each assembly to ensure a reliable, leak-free connection.

How does Expanded PTFE (ePTFE) differ from solid PTFE?

Expanded PTFE is manufactured by expanding PTFE to create a microporous structure. This gives ePTFE a softer, more fibrous, and highly flexible texture compared to solid PTFE. The key advantages are its superior conformability to rough or warped flange surfaces, excellent scalability (it can seal with very low bolt loads), and good recovery properties. Kaxite ePTFE gaskets are often the best choice for heat exchangers, glass-lined equipment, and large-diameter flanges.

What flange surface finish is required for PTFE gaskets?

A serrated finish (e.g., concentric or spiral serrations) is typically recommended. A surface finish between 125 and 500 microinches (3.2 to 12.5 µm) Ra is ideal. Finishes that are too smooth (e.g., polished) may not provide enough "bite" for the gasket, while surfaces that are too rough can cause excessive gasket wear and extrusion. Kaxite Sealing can provide guidance based on your specific gasket type.

How do I determine the correct bolt torque for a PTFE gasket?

The correct bolt torque depends on several factors: gasket material type, size, thickness, flange rating, and bolt specifications. Using an incorrect torque is a common cause of gasket failure. Under-torquing can lead to leakage, while over-torquing can crush the gasket, causing it to extrude or crack. Kaxite Sealing provides detailed torque recommendations in our technical datasheets and can calculate specific values based on your application parameters using industry-standard methods.

Does Kaxite Sealing offer PTFE gaskets in custom shapes and sizes?

Absolutely. Kaxite Sealing's manufacturing capabilities extend far beyond standard ASME B16.21 gaskets. We regularly produce custom PTFE gaskets in oval, square, rectangular, and complex irregular shapes. We can also create gaskets with intricate features like tabs, alignment holes, or multi-layer constructions. Our engineering team works directly with clients to develop sealing solutions for non-standard equipment.

Are Kaxite PTFE gaskets suitable for oxygen service?

Special precautions must be taken for oxygen service. While PTFE itself is compatible, it must be thoroughly cleaned of all organic contaminants (oils, greases) to prevent ignition hazards. Kaxite Sealing offers specially cleaned and packaged PTFE gaskets for oxygen and other high-purity oxidant services, processed in a controlled environment to meet stringent industry standards like ASTM G93.

How should PTFE gaskets be stored?

PTFE gaskets from Kaxite Sealing should be stored in a cool, dry place away from direct sunlight and heat sources. They should be kept in their original packaging until ready for use to protect them from dust, dirt, and mechanical damage. Avoid storing them under heavy objects that could cause deformation. When stored properly, PTFE gaskets have an exceptionally long shelf life.
