In the demanding world of industrial fluid sealing, the choice of packing material is paramount to operational efficiency, safety, and cost-effectiveness. Among the plethora of materials available, PTFE Packing stands out as a versatile and highly reliable solution. Polytetrafluoroethylene, or PTFE, is a synthetic fluoropolymer celebrated for its exceptional chemical resistance, wide temperature tolerance, and low friction properties. When engineered into braided, twisted, or filament packing styles, it creates a dynamic seal capable of handling some of the most challenging applications. Kaxite Sealing has dedicated years of research and precision manufacturing to perfecting our PTFE Packing offerings, ensuring they meet the rigorous standards of industries worldwide.
The primary function of any packing is to create a seal around a moving component, such as a pump shaft or valve stem, preventing process fluid leakage while allowing necessary movement. Traditional materials like flax or aramid fibers often fall short when faced with aggressive chemicals or extreme temperatures. This is where PTFE Packing excels. Its innate inertness makes it compatible with a vast range of media, from strong acids and caustics to solvents and ultra-pure water. Furthermore, its self-lubricating nature reduces friction and wear on equipment shafts, extending both the life of the packing and the rotating equipment itself. For engineers and maintenance specialists seeking to minimize downtime and leakage, specifying high-quality PTFE Packing from a trusted supplier like Kaxite Sealing is a strategic decision.
Kaxite Sealing’s PTFE Packing is not a one-size-fits-all product. We manufacture a range of specialized styles to address specific operational needs. Our products are characterized by consistent quality, high purity, and performance-driven design. Below are the core advantages and detailed specifications that set our packing apart.
| Product Style | Construction | Density (g/cm³) | pH Range | Temperature Range (°C) | Primary Applications |
|---|---|---|---|---|---|

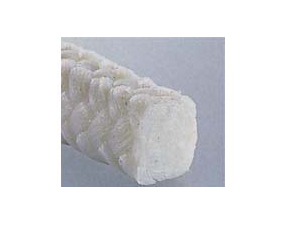

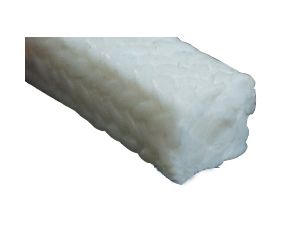

| Virgin PTFE Filament Yarn | Braided from 100% pure, unsintered PTFE filaments. | 1.2 - 1.4 | 0 - 14 | -260 to +260 | Aggressive chemicals, ultra-pure systems, food & pharmaceutical. |

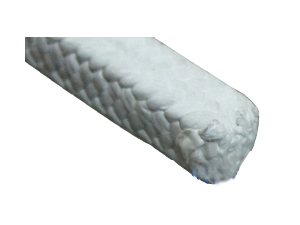

| PTFE Impregnated Aramid | Aramid fiber core fully impregnated with PTFE dispersion and lubricants. | 1.4 - 1.6 | 2 - 12 | -100 to +290 | High-speed pump shafts, high-pressure valves, steam services. |

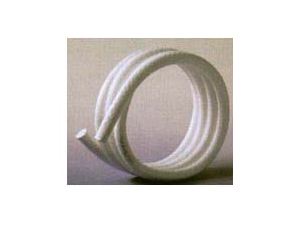

| Expanded/Graphite-Filled PTFE | Expanded PTFE tape laminated with graphite or carbon. | 1.5 - 1.8 | 0 - 14 | -200 to +280 (in air) | Heat exchangers, aggressive chemical pumps, high-temperature valves. |
| PTFE Envelope Packing | PTFE jacket (envelope) filled with various PTFE-based materials. | Varies by fill | 0 - 14 | -260 to +260 | Where minimal shaft wear and zero contamination are top priorities. |
Selecting the correct style requires an analysis of the operating conditions. Kaxite Sealing's technical support team can assist in this critical selection process to ensure optimal performance.
Q: How does PTFE Packing compare to traditional graphite or aramid packing?
A: While graphite packing excels in very high temperatures and aramid offers high tensile strength, PTFE Packing provides the broadest chemical resistance and lowest friction. It is often the best all-around choice for applications involving aggressive chemicals, product purity concerns, or where lubrication is difficult. Kaxite Sealing PTFE Packing combines these benefits with engineered durability.
Q: Can PTFE Packing be used in high-speed pump applications?
A: Yes, but the specific style must be chosen carefully. Our PTFE-impregnated aramid packing is specifically designed for high-speed and high-pressure applications. The aramid core provides superior tensile strength and resilience, while the PTFE impregnation offers chemical resistance and reduced friction. For pure high-speed chemical service, our tightly braided virgin filament yarn is also an excellent option.
Q: Is PTFE Packing suitable for potable water or food processing equipment?
A> Absolutely. Virgin, unsintered PTFE is FDA-compliant and NSF/ANSI 61 certified for contact with drinking water. It does not leach contaminants, taste, or odor, making Kaxite Sealing's virgin PTFE Packing ideal for food, beverage, and pharmaceutical applications where hygiene and purity are non-negotiable.
Q: What is the proper installation procedure for PTFE Packing?
A> Correct installation is crucial for performance. The shaft or stem should be clean and smooth. Rings are typically cut using a sharp blade on a mandrel of the same diameter as the shaft, with a straight, butt-cut joint staggered 90 degrees around the shaft for each ring. Follow the manufacturer's recommended tightening procedure—initial hand-tightening of the gland follower, followed by a brief run-in period and subsequent slight tightening until a minimal, controlled leakage (a few drops per minute) is achieved for cooling and lubrication.
Q: How do I know when to repack with new PTFE Packing?
A> Indicators include a persistent increase in leakage beyond acceptable levels even after gland adjustment, a noticeable increase in power consumption or shaft temperature, or visible physical degradation of the packing rings upon inspection. Proactive replacement as part of a planned maintenance schedule, based on historical performance data, is often more cost-effective than waiting for failure.
Q: Does Kaxite Sealing offer custom PTFE Packing sizes or formulations?
A> Yes. Kaxite Sealing prides itself on providing tailored sealing solutions. We can manufacture packing in non-standard sizes, combine different PTFE materials, or incorporate specific additives (like inhibitors for harsh acids) to meet unique application challenges. Contact our engineering department with your specific requirements.
The unique property set of PTFE Packing makes it indispensable across a wide industrial spectrum. In the chemical processing industry, it seals pumps and valves handling corrosive acids, caustics, and solvents. The pharmaceutical and biotechnology sectors rely on its purity and cleanability for reactors and purification systems. Food and beverage plants use it in pumps for ingredients, cleaners, and final products. In water and wastewater treatment, it provides durable sealing in chemical dosing pumps and clarifier drives. The pulp and paper industry employs it for bleaching chemicals and black liquor services. Even in semiconductor fabrication, ultra-clean PTFE Packing seals pumps for high-purity etchants and solvents. For each of these sectors, Kaxite Sealing provides not just a product, but a partnership, ensuring our PTFE Packing delivers reliability that protects assets, products, and the environment.
