Mica Sheet: The Ultimate High-Performance Insulating Material
In the demanding world of electrical and thermal insulation, few materials match the unique combination of properties offered by mica. A naturally occurring mineral known for its exceptional dielectric strength, thermal stability, and chemical inertness, mica is processed into versatile sheets that are indispensable across numerous high-tech industries. At Kaxite Sealing, we specialize in engineering premium-grade mica sheets that meet the most rigorous specifications for reliability and performance. This comprehensive guide delves into the technical specifications, applications, and advantages of our mica sheet products, providing the detailed information engineers, purchasers, and designers need.
**Understanding Mica Sheet: Composition and Types**

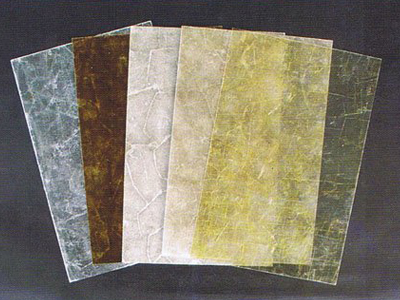

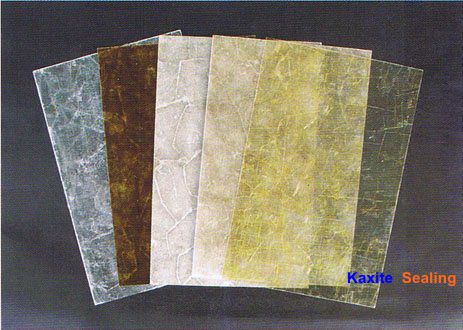

Mica sheets are manufactured by bonding together mica splittings or mica paper with a suitable binder. The type of mica and binder defines the sheet's characteristics. The two primary types are:
* **Muscovite Mica Sheet:** Known for its superior electrical insulation properties, high dielectric strength, and excellent thermal stability up to approximately 500-600°C. It is the most common type for electrical applications.
* **Phlogopite Mica Sheet:** Offers higher thermal endurance, typically up to 800-1000°C, but with slightly lower dielectric strength compared to Muscovite. It is preferred in applications involving very high temperatures.
At Kaxite Sealing, we produce both types, allowing us to tailor solutions to specific operational environments.
**Key Product Parameters and Specifications**
Our mica sheets are characterized by a set of critical parameters that define their performance envelope. Below is a detailed breakdown of these specifications presented in both list and table formats for clarity.
**Primary Technical Parameters (List Format):**
* **Material Base:** 100% Natural Muscovite or Phlogopite mica splittings/paper.
* **Binder Types:** Silicone resin, epoxy resin, organic (shellac) resin, or inorganic binders for high-temperature grades.
* **Continuous Service Temperature:** Ranges from 150°C (for some organic binders) to 1000°C (for phlogopite with inorganic binders).
* **Dielectric Strength:** Typically between 15 kV/mm to 50 kV/mm, depending on grade, thickness, and binder.
* **Thickness Range:** Standard from 0.1mm to 3.0mm. Custom thicknesses are available upon request.
* **Density:** Approximately 1.8 - 2.6 g/cm³, affecting mechanical strength and flexibility.

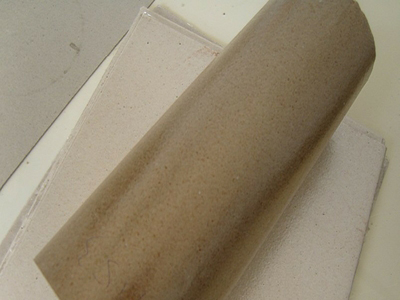

* **Flexibility:** Varies from rigid plates to highly flexible sheets, contingent on binder and thickness.
* **Thermal Conductivity:** Relatively low, around 0.3 – 0.8 W/m·K, providing excellent thermal insulation.
* **Chemical Resistance:** Highly resistant to most acids, oils, solvents, and water.
* **Puncture Resistance:** High, providing durable protection against physical abrasion and piercing.
**Detailed Specification Table (Kaxite Sealing Standard Grades):**
| Grade Code | Mica Type | Binder | Thickness (mm) | Temp. Range (°C) | Dielectric Strength (kV/mm, min) | Key Applications |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| **KS-MUS-S** | Muscovite | Silicone Resin | 0.15 - 1.5 | -60 to +500 | 25 | Electric motor slot liners, coil insulation, flexible heaters. |
| **KS-MUS-E** | Muscovite | Epoxy Resin | 0.2 - 2.0 | -50 to +180 | 30 | PCB insulation, transformer barriers, busbar insulation. |
| **KS-PHL-I** | Phlogopite | Inorganic | 0.5 - 3.0 | up to 1000 | 18 | Furnace windows, high-temperature gaskets, welding protection. |
| **KS-HP-F** | Muscovite Paper | High-Purity Silicone | 0.1 - 0.5 | -60 to +700 | 40 | Aerospace & military electronics, critical HV insulation. |
| **KS-COMB** | Composite | Hybrid | 1.0 - 5.0 | up to 800 | 22 | Structural insulation in appliances, heating elements backing. |
**Industries and Applications**
The versatility of Kaxite Sealing mica sheets makes them critical in sectors where failure is not an option:
* **Electrical Power Generation & Distribution:** Insulation in generators, turbines, transformers, and switchgear.
* **Automotive & Electric Vehicles:** Insulation in battery packs, electric motors, charging systems, and heating units.
* **Home Appliances:** Toasters, hair dryers, microwaves, and space heaters as element insulation and barriers.
* **Industrial Heating:** Insulation for industrial furnaces, strip heaters, cartridge heaters, and thermal processing equipment.
* **Aerospace & Defense:** High-reliability insulation for avionics, radar systems, and propulsion components.
* **Electronics:** Insulating barriers in power supplies, PCBs, and semiconductor manufacturing equipment.
**Mica Sheet FAQ: Your Questions Answered**
**Q: What are the main advantages of using mica sheet over other insulating materials like ceramics or plastics?**
A: Mica sheet offers a unique balance of properties: excellent electrical insulation even at high temperatures, superior thermal stability without melting or degrading, and inherent flexibility that ceramics lack. Unlike many plastics, it does not carbonize or track easily under electrical stress. It is also mechanically robust, resistant to puncturing, and chemically inert, providing long-term reliability in harsh conditions.
**Q: How do I choose between Muscovite and Phlogopite mica sheets?**
A: The choice hinges on your primary requirement. If maximum dielectric strength and electrical performance at moderately high temperatures (up to ~600°C) are critical, choose Muscovite (like our KS-MUS grades). If your application involves extreme heat (up to 1000°C) as the main challenge, Phlogopite (like KS-PHL-I) is the better choice due to its higher thermal endurance, though with a slight trade-off in dielectric strength.
**Q: Can mica sheets be machined or fabricated into specific shapes?**
A: Yes, one of the key benefits of mica sheets from Kaxite Sealing is their excellent machinability. They can be precision-cut, punched, stamped, drilled, or laser-cut into complex shapes with clean edges. This allows for custom gaskets, washers, liners, and insulated components without material fraying or delamination when processed correctly.
**Q: Are Kaxite Sealing mica sheets flame retardant or combustible?**
A: Our mica sheets are inherently non-combustible and flame-retardant. The natural mica mineral itself is completely inorganic and will not burn. The binders used, especially silicone and inorganic types, are selected for their high fire resistance. They do not support combustion and meet stringent industry standards for fire safety.
**Q: How should mica sheets be stored and handled to maintain their properties?**
A: Store sheets in a cool, dry environment away from direct moisture. While mica is moisture-resistant, prolonged exposure to humidity can affect some organic binders. Handle sheets with care to avoid excessive bending or kinking, especially rigid grades. Use appropriate tools for cutting to achieve clean edges. For flexible grades, roll them with the natural grain of the mica to prevent cracking.
**Q: Can you provide mica sheets with adhesive backing for easy installation?**
A: Absolutely. Kaxite Sealing offers many standard and custom grades with pressure-sensitive adhesive (PSA) backing. This feature simplifies assembly in applications like heating element mounting, electronic device shielding, and coil wrapping, reducing installation time and improving bond integrity.
**Q: What quality assurance and certifications do Kaxite Sealing products have?**
A: We maintain rigorous quality control from raw material selection to final inspection. Our production processes and many of our mica sheet grades comply with international standards such as IEC, ASTM, and NEMA. Specific certifications like UL recognition and RoHS compliance are available for applicable product lines. Detailed test reports and material data sheets (MDS) are provided to customers.
**The Kaxite Sealing Advantage**
Choosing Kaxite Sealing for your mica sheet requirements means partnering with a specialist focused on material excellence. Our expertise allows us to not only supply standard off-the-shelf grades but also collaborate on custom formulations. We can adjust binder systems, thickness, density, and flexibility to create a mica sheet solution that perfectly aligns with your specific voltage, temperature, and mechanical demands. Our technical support team is equipped to help you select the optimal grade, ensuring performance, safety, and cost-effectiveness in your application.
