High-Quality PTFE Rod from Leading Manufacturers in China

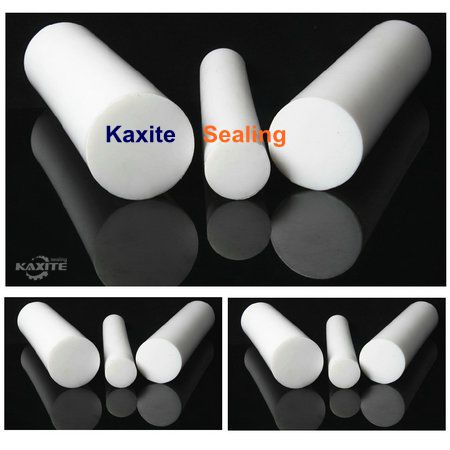

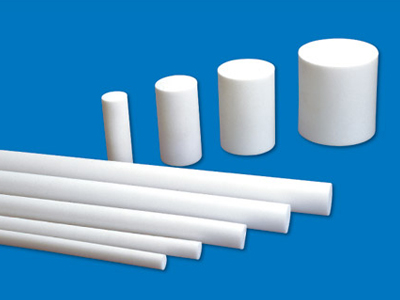

What is a PTFE Rod?

Polytetrafluoroethylene, universally recognized by its abbreviation PTFE, is a high-performance synthetic fluoropolymer renowned for its exceptional chemical resistance, thermal stability, and low friction properties. A PTFE rod is a solid cylindrical form of this remarkable material, engineered and extruded to provide a versatile and reliable solution for countless industrial and engineering applications. These rods serve as a fundamental component in environments where other materials would fail, offering unparalleled performance as bearings, seals, insulators, and wear pads. The unique molecular structure of PTFE grants it a near-universal inertness, making it compatible with almost all chemicals and solvents. Furthermore, its extremely low coefficient of friction and ability to perform across a vast temperature range solidify its status as an indispensable engineering plastic for demanding sectors like aerospace, chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing.

Key Features and Benefits of Kaxite Sealing PTFE Rods

At Kaxite Sealing, we manufacture premium-grade PTFE rods that stand up to the most rigorous challenges. Our commitment to quality ensures each rod delivers consistent, superior performance.

• Exceptional Chemical Resistance: Inert to virtually all industrial chemicals and solvents, making it ideal for aggressive environments.
• Wide Temperature Range: Maintains functionality from -200°C to +260°C (-328°F to +500°F) without loss of physical properties.
• Outstanding Dielectric Properties: An excellent electrical insulator, even at high frequencies and in varying moisture conditions.
• Low Coefficient of Friction: The slipperiest solid material known, providing self-lubricating properties that reduce wear and energy consumption.
• High Purity & Compliance: Our rods are produced to meet stringent standards, including FDA compliance for food contact and USP Class VI for medical applications.
• Zero Moisture Absorption: Does not absorb water, ensuring dimensional stability in humid or wet conditions.
• Excellent Weathering and UV Resistance: Performs reliably outdoors and under exposure to sunlight without significant degradation.

PTFE Rod Technical Specifications & Data

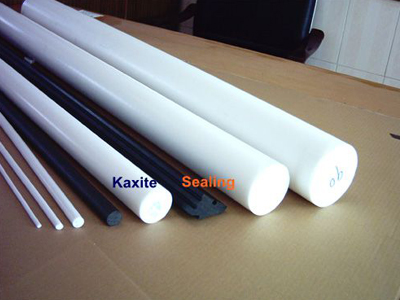

Understanding the precise specifications of a PTFE rod is crucial for proper material selection and design engineering. Below are the standard properties and available dimensions for Kaxite Sealing PTFE rods. Custom sizes and formulations (e.g., glass-filled, carbon-filled, bronze-filled) are available upon request to enhance specific characteristics like creep resistance, wear, or thermal conductivity.

Standard Material Properties

Standard Stock Sizes (Virgin PTFE)

Note: Tolerance on diameter is typically ±1% or ±0.5mm, whichever is greater. All dimensions can be customized based on project requirements.

Industries and Applications for PTFE Rods

The versatility of PTFE rods from Kaxite Sealing makes them a critical material across a diverse spectrum of industries. Their unique combination of properties solves complex engineering challenges.

• Chemical Processing: Used for seals, gaskets, valve parts, and pump components that handle corrosive acids, alkalis, and solvents.
• Aerospace & Aviation: Essential for insulation, bearings, and wear components in fuel systems, oxygen systems, and airframes due to its temperature stability and low outgassing.
• Pharmaceutical & Food Processing: FDA-compliant rods are used for seals, guides, and parts in hygienic processing equipment where purity, cleanliness, and chemical resistance are paramount.
• Electrical & Semiconductor: Serves as excellent insulators for terminals, connectors, and wafer processing equipment, offering high dielectric strength and contamination-free performance.
• Industrial Machinery: Widely used for low-friction bearings, slide plates, thrust washers, and wear strips, reducing maintenance and improving machine efficiency.
• Automotive: Applied in fuel systems, transmission seals, and under-hood components requiring chemical and heat resistance.

Frequently Asked Questions (FAQ) About PTFE Rods

Material Properties and Selection

Q: What is the main advantage of using a PTFE rod over metal or other plastic rods?
A: The primary advantage is PTFE's unique combination of near-universal chemical inertness, an extremely low coefficient of friction (it's self-lubricating), and exceptional thermal stability across a very wide range. Metals corrode, and most other plastics cannot match this full spectrum of properties, especially the combination of high-temperature performance and chemical resistance.

Q: Can PTFE rods be used for high-load applications?
A: Virgin PTFE has a relatively low resistance to creep (cold flow) under sustained heavy loads. For high-load applications, Kaxite Sealing recommends using filled PTFE compounds. Our rods can be manufactured with fillers like glass, carbon, graphite, or bronze, which significantly improve compressive strength, reduce deformation, and enhance wear resistance, making them suitable for demanding mechanical applications.

Q: What are the temperature limits for a PTFE rod?
A: Kaxite Sealing PTFE rods can be used continuously from cryogenic temperatures as low as -200°C (-328°F) up to +260°C (+500°F). Short-term exposure to even higher temperatures may be possible, but above 260°C, gradual degradation begins. It retains excellent flexibility and impact strength even at cryogenic levels.

Machining and Fabrication

Q: Are PTFE rods easy to machine?
A: Yes, PTFE is famously easy to machine using standard workshop equipment for metals or plastics. It can be turned, milled, drilled, sawed, and tapped. However, due to its softness and plasticity, sharp tools, high cutting speeds, and proper fixturing are recommended to achieve clean cuts and precise dimensions without deformation. Its low thermal conductivity means heat dissipation during machining is slow.

Q: Can PTFE rods be bonded or welded?
A: Bonding PTFE is challenging due to its non-stick, chemically inert surface. Standard adhesives do not work. Specialized processes like sodium etching (napthenate treatment) or the use of high-temperature, PTFE-specific adhesives are required for creating solid bonds. Welding (heat sealing) is possible using specialized equipment for joining PTFE films or sheets, but is less common for solid rods, where mechanical fastening is often preferred.

Purchasing and Kaxite Sealing

Q: Why should I choose Kaxite Sealing for my PTFE rod requirements?
A: Kaxite Sealing brings decades of expertise in high-performance polymer engineering. We don't just supply stock material; we provide engineered solutions. Our PTFE rods are produced under strict quality control to ensure batch-to-batch consistency, purity, and performance. We offer comprehensive technical support, from material selection to custom compounding and fabrication guidance, ensuring you get the right product for your specific application.

Q: Do you offer custom sizes or modified PTFE compounds?
A: Absolutely. While we maintain a large inventory of standard virgin PTFE rod sizes, our strength lies in customization. We can produce rods in non-standard diameters and lengths. More importantly, we can manufacture rods with various fillers (glass, carbon, bronze, MoS2, etc.) and in different grades (e.g., FDA, USP Class VI, high-purity for semiconductor) to meet specific mechanical, thermal, or regulatory requirements. Contact our engineering team with your specifications.

Q: What is the lead time for orders, and do you provide certifications?
A: Lead times vary based on stock availability and order complexity. Standard items are often ready for immediate shipment. For custom projects, we provide clear timelines upon quotation. Kaxite Sealing can provide material certifications, including Certificates of Analysis (CoA) and compliance statements (e.g., FDA, USP Class VI, REACH, RoHS) upon request, giving you full traceability and assurance of quality.
