In the demanding world of industrial sealing, where pressures soar and temperatures reach extremes, few solutions offer the reliability and metal-to-metal sealing integrity of the Ring Joint Gaskets (RJGs). These precision-engineered components are the cornerstone of safety and leak-tight performance in critical flanged connections, particularly within the oil and gas, petrochemical, and high-pressure processing industries. Unlike softer, compressive gaskets, an RJG functions as a controlled "crush" seal. It is seated in a machined groove in the flange faces, and when the flanges are bolted together, the ring's raised, rounded sections (the "hubs") are compressed, creating a highly effective, permanent seal along the entire circumference. This article delves into the technical specifications, selection criteria, and best practices for these vital sealing elements, highlighting the engineered solutions provided by Kaxite Sealing.
The performance of a Ring Joint Gasket is dictated by a set of precise geometric and material parameters. Understanding these is crucial for correct selection and application.
RJGs are standardized under API (American Petroleum Institute) Specification 6A for wellhead equipment and API 17D for subsea equipment, with common profiles also defined by ASME B16.20. The two primary styles are:
The table below outlines the key dimensional identifiers for standard R and RX rings. All dimensions are in inches.
| Ring Number (Size) | Nominal Pipe Size (NPS) | Pitch Diameter (P) | Overall Width (A) - R | Overall Width (A) - RX | Cross-Section Width (G) - R |
|---|---|---|---|---|---|
| R23 | 1/2 | 1.344 | 0.781 | 0.812 | 0.188 |
| R31 | 1 | 1.844 | 1.062 | 1.125 | 0.250 |
| R45 | 2 | 2.844 | 1.375 | 1.438 | 0.312 |
| R60 | 4 | 5.031 | 1.812 | 1.938 | 0.438 |
| R76 | 8 | 9.250 | 2.375 | 2.500 | 0.562 |
The operating environment dictates the material choice. Kaxite Sealing manufactures RJGs from a range of materials to meet diverse service conditions.
Q: What is the fundamental difference between an R-style and an RX-style ring joint gasket?

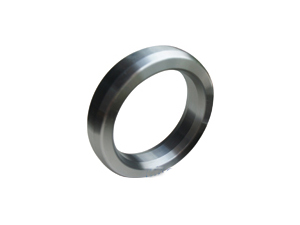

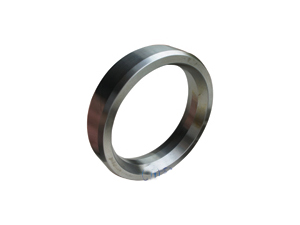

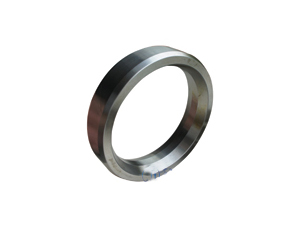

A: The core difference lies in their cross-section and sealing mechanism. The R-style has an oval cross-section and relies primarily on the bolt load to create initial seal compression. The RX-style has an octagonal cross-section. This design allows it to act as a pressure-energized seal; internal system pressure helps to further force the ring's hubs into the flange grooves, enhancing the seal. RX rings generally offer higher pressure ratings and better performance in cyclic service.
Q: Can a ring joint gasket be reused after disassembly?
A: It is strongly discouraged and generally considered poor practice. A ring joint gasket seals by undergoing controlled plastic deformation (crushing) during installation. Once removed, it has lost its original geometry and sealing force. Reusing an old ring significantly increases the risk of a leak. Always install a new, correctly specified gasket from a reliable supplier like Kaxite Sealing during any flange reassembly.
Q: How do I select the correct material for my application?
A: Material selection is a critical safety and longevity decision. Key factors include:
- Service Fluid: Identify corrosive elements (H2S, CO2, chlorides, acids, caustics).
- Temperature & Pressure: Higher temperatures can accelerate corrosion and reduce material strength.
- Industry Standards: Many projects specify material grades per API, NACE MR0175/ISO 15156 (for sour service), or customer specifications.
Consulting with the engineering team and relying on experienced manufacturers is essential. Kaxite Sealing's technical support can guide you through this selection based on your specific operating conditions.
Q: What is the proper procedure for installing a ring joint gasket?
A: Correct installation is paramount. The basic procedure involves:
1. Inspection: Thoroughly clean the flange grooves and the new gasket. Check for nicks, scratches, or corrosion in the groove. The groove must be smooth and within tolerance.
2. Lubrication: Apply a thin, even film of suitable anti-seize or assembly lubricant to the gasket and the flange groove. This prevents galling and ensures even compression.
3. Placement: Carefully seat the gasket into the bottom flange groove. Ensure it sits flat and is not twisted.
4. Bolt Tightening: Use a calibrated torque wrench and follow a star-pattern tightening sequence in multiple stages (e.g., 30%, 60%, 100% of final torque) to achieve uniform compression across the flange. Always follow the flange manufacturer's or applicable standard's torque specifications.
Q: Why might a ring joint connection still leak after installation?
A: Leaks can occur due to several reasons:

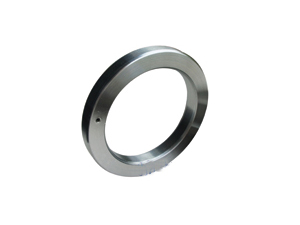

- Incorrect Gasket: Using the wrong style (R vs. RX vs. BX), size, or material.
- Damaged or Worn Grooves: Flange grooves that are pitted, corroded, or out of dimensional tolerance cannot provide a proper sealing surface.
- Improper Installation: Insufficient or uneven bolt torque, lack of lubrication causing gasket shear, or a twisted gasket.
- Flange Misalignment: Excessive parallel or angular misalignment between flanges creates uneven loading on the ring.
A systematic inspection of all these factors is necessary for troubleshooting.
Q: What are the advantages of sourcing ring joint gaskets from Kaxite Sealing?
A: Kaxite Sealing specializes in high-integrity sealing solutions. Our ring joint gaskets are manufactured from certified raw materials with full traceability. We employ advanced CNC machining and rigorous quality control, including dimensional verification and material certification (MTRs), to ensure every gasket meets or exceeds API and ASME standards. Our technical expertise allows us to offer not just products, but application guidance for the most challenging environments, ensuring safety, reliability, and optimal performance in your operations.
Choosing the right ring joint gasket goes beyond matching a ring number to a flange size. It requires a systems approach.
