In complex industrial piping and bolting systems, controlling electrical current flow is paramount to safety and longevity. Flange Insulation Gasket Kits are engineered solutions designed to prevent galvanic corrosion, isolate cathodic protection systems, and protect against stray electrical currents. By creating a barrier between flanged joints, these kits ensure the integrity of pipelines, valves, and other critical assets in industries such as oil & gas, chemical processing, water treatment, and offshore engineering. Proper selection and installation are critical for achieving optimal insulation resistance and long-term performance.
Kaxite Sealing specializes in manufacturing high-performance insulation kits that meet rigorous international standards. Our kits are designed for reliability in the most demanding environments.

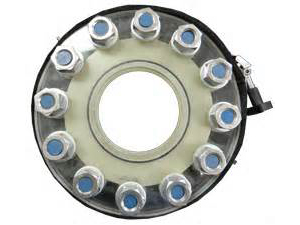

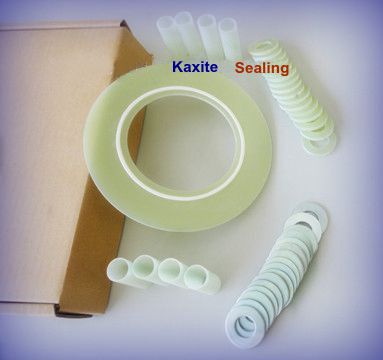

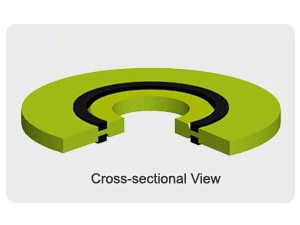

A complete flange insulation gasket kit from Kaxite Sealing typically includes all necessary elements for a fully insulated joint. The primary components are:
Selecting the right kit requires understanding its specifications. Below are the key parameters for Kaxite Sealing standard kits.
| Component | Standard Material | Key Properties | Temperature Range | Pressure Rating |
|---|---|---|---|---|

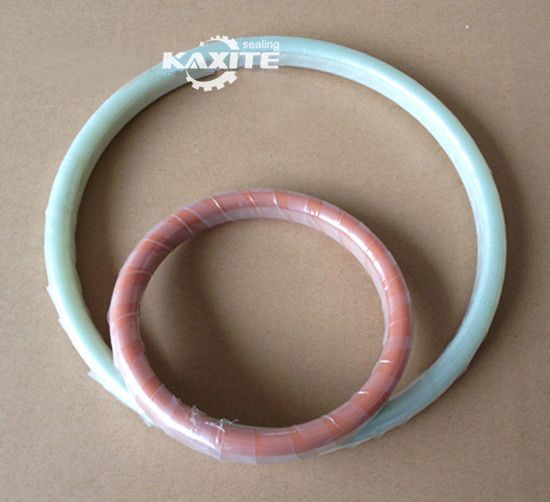

| Insulation Gasket | PTFE (Polytetrafluoroethylene), Filled PTFE, or Specialty Elastomers with Insulating Layers | High Dielectric Strength, Chemical Inertia, Low Creep | -100°F to +500°F (-73°C to +260°C) for PTFE-based | Up to Class 300/PN40 (varies with design) |
| Insulating Washers | PTFE, PEEK, or Phenolic Resin | Excellent Electrical Resistance, High Compressive Strength | -100°F to +480°F (-73°C to +250°C) | N/A (Load Bearing) |
| Insulating Sleeves | PTFE or Polymer | Isolates bolt shank from flange hole | -100°F to +500°F (-73°C to +260°C) | N/A |
| Steel Washers | Carbon Steel (Plated) or Stainless Steel A2/A4 | Load Distribution, Corrosion Resistance | Dependent on plating/material | N/A |
| Parameter | Test Standard | Typical Value (Kaxite Sealing Kits) | Notes |
|---|---|---|---|
| Dielectric Strength (Gasket) | ASTM D149 | > 200 kV/inch | Measures breakdown voltage of insulating material. |
| Insulation Resistance (Complete Joint) | ASTM D257 / NACE SP0575 | > 1 Megohm at 1000V DC | Resistance across the entire installed assembly. Critical metric. |
| Surface Resistivity | ASTM D257 | > 1 x 10^15 ohms/sq | Resistance to surface current leakage. |
| Compressive Strength (Gasket) | ASTM D695 | Varies by material: 3000 - 8000 psi | Ability to withstand bolt load without excessive creep. |
| Chemical Compatibility | NACE MR0175/ISO 15156 | Excellent for most acids, bases, hydrocarbons | PTFE is virtually inert. Confirm for specific media. |
Q: When is a flange insulation gasket kit required?
A: These kits are essential in several scenarios: 1) To prevent galvanic corrosion between dissimilar metals in a flanged connection (e.g., carbon steel to stainless steel). 2) To electrically isolate sections of a pipeline for effective Cathodic Protection (CP) system operation. 3) To protect equipment from damage caused by stray or induced AC/DC currents, such as near railways or power lines. 4) In hazardous areas where spark prevention is critical for safety.
Q: How do I select the right material for my application?
A: Material selection depends on three primary factors: service temperature, chemical media, and required pressure rating. Standard PTFE kits are suitable for most broad chemical services up to 260°C. For higher temperatures or better creep resistance, filled PTFE or PEEK may be specified. For highly corrosive or sour service (H2S environments), ensure materials comply with NACE MR0175. Always consult the Kaxite Sealing engineering team with your specific process conditions for a recommendation.
Q: Can I use a standard gasket with separate insulating washers instead of a full kit?
A: No, this is not recommended and often ineffective. A complete flange insulation gasket kit is designed as a system. The gasket insulates between flanges, while the sleeves and washers insulate the bolts. Omitting any component creates a potential electrical path, drastically reducing the insulation resistance and compromising the entire purpose of the installation. All current-carrying paths must be broken.
Q: What are the critical steps for proper installation of an insulation kit?
A: Proper installation is crucial for performance. Key steps include: 1) Thoroughly clean and inspect flange faces—they must be free of rust, paint, and debris. 2) Ensure the flange faces are parallel. 3) Carefully insert insulating sleeves into the bolt holes. 4) Place the insulating gasket concentrically on the flange. 5) Assemble bolts with insulating washers against the flange and steel washers against the nut. 6) Tighten bolts gradually in a star/cross pattern to the specified torque to ensure even compression without damaging the insulating components. Always follow the kit's detailed instructions.
Q: How do I verify the insulation integrity after installation?
A: Post-installation testing is a best practice. Using a high-resistance megohmmeter (e.g., 1000V DC), measure the resistance between the flanges and across each bolt to the flange. The complete joint assembly should show a resistance greater than 1 Megohm, as per industry guidelines like NACE SP0575. Regular re-testing during maintenance shutdowns is advised to monitor for any degradation or moisture ingress.
Q: What causes an insulation kit to fail prematurely?
A: Common failure causes include: Improper Installation: Over-torquing can crush insulating washers; under-torquing can lead to leakage. Contamination: Dirt, moisture, or conductive sealants on flange faces or components create electrical paths. Material Incompatibility: Exposure to temperatures or chemicals beyond the material's rating causes breakdown. Flange Misalignment: Creates uneven pressure on the gasket, leading to localized compression and potential electrical tracking. Kaxite Sealing kits are designed to minimize these risks when installed correctly.
Q: Are these kits suitable for fire-safe applications?
A: Standard PTFE-based kits are not inherently fire-safe. For applications requiring fire resistance, such as in offshore or refinery safety-critical lines, Kaxite Sealing offers special flange insulation gasket kits constructed with certified fire-resistant materials that maintain insulation integrity during and after exposure to fire, often tested to standards like API 6FB or ISO 10497.
Q: How does temperature affect the insulation performance?
A: Temperature directly impacts the physical and electrical properties of polymer materials. At high temperatures, some materials may soften (reduce compressive strength) or experience increased electrical conductivity. At very low temperatures, materials can become brittle. It is vital to select a kit whose entire component materials are rated for the full operational temperature cycle of your system. Kaxite Sealing provides detailed temperature-resistance data for all our products.
Q: Can Kaxite Sealing provide custom-designed insulation kits for non-standard flanges?
A: Absolutely. While we stock kits for common standards, a significant portion of our business involves engineering custom solutions. We can manufacture kits for proprietary flanges, large diameters, exotic material requirements, or unique configurations like insulated spectacle blinds or spool pieces. Provide us with the flange drawings and service conditions for a quotation.
The use of these kits spans across critical industries where pipeline integrity is non-negotiable.
To specify a Kaxite Sealing flange insulation gasket kit, please have the following information ready: Flange Standard (e.g., ASME B16.5), Nominal Pipe Size and Pressure Class, Flange Facing Type (RF, FF, RTJ), Service Temperature, and Chemical Media. Our technical sales team can then identify the optimal kit from our standard range or initiate the design process for a custom solution. Comprehensive material test reports and certificates of conformity are supplied with every order.
