In the complex world of industrial machinery and piping systems, one component plays a critical, though often overlooked, role in ensuring safety, efficiency, and longevity: the gasket. A gasket is a mechanical seal designed to fill the space between two or more mating surfaces, generally to prevent leakage from or into the joined objects while under compression. For over two decades, our team of sealing specialists has analyzed, tested, and optimized gasket applications across countless industries. This deep expertise informs every product developed by Kaxite Sealing, a leader in high-performance sealing solutions. This guide provides a detailed look at gasket types, materials, key parameters, and answers to the most common questions, empowering you to make informed decisions for your specific application.
Selecting the correct gasket type is the first and most crucial step in designing a leak-free system. The primary categories include:
The performance of a gasket hinges on its material properties. At Kaxite Sealing, we engineer our materials to meet precise operational demands. Key parameters include:
To illustrate the professional grade of our offerings, below are specification tables for two of our flagship gasket product lines. These parameters are derived from rigorous laboratory testing and field validation.

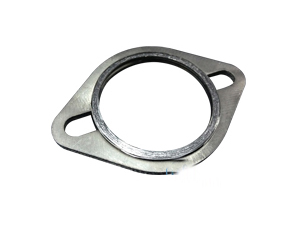

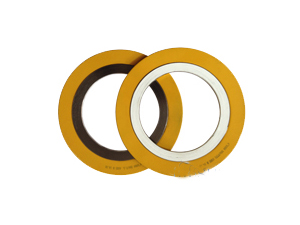

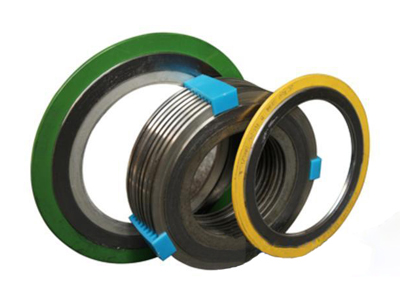

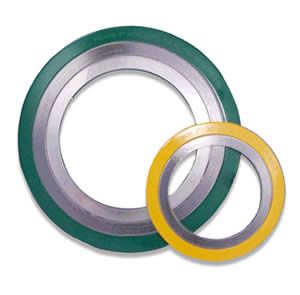

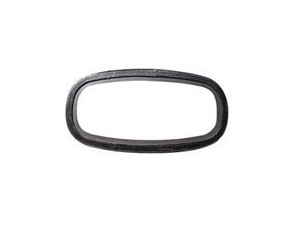

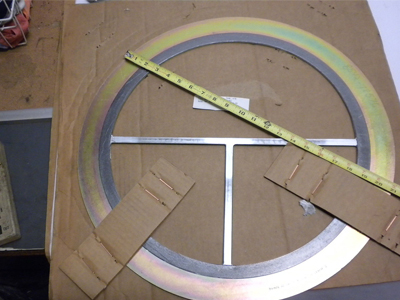

| Model Code | Metal Windings | Filler Material | Temp. Range (°C) | Max. Pressure (Bar) | Density (g/cm³) | Primary Applications |
|---|---|---|---|---|---|---|
| KX-SWG-304G | SS 304 | Flexible Graphite | -200 to 550 (Inert) / 450 (Oxidizing) | 250 | 2.2 - 2.3 | Heat Exchangers, Petrochemical Piping, Steam Lines |
| KX-SWG-316PTFE | SS 316 | PTFE | -260 to 260 | 150 | 2.8 - 3.0 | Chemical Processing, Pharmaceutical, Food & Beverage (High Purity) |
| KX-SWG-IN718G | Inconel 718 | Flexible Graphite | -200 to 650 | 400+ | 3.2 - 3.4 | High-Temp Reactors, Aerospace, High-Pressure Fuel Systems |
| Grade | Thickness (mm) | Tensile Strength (MPa) | Compression @ 70 MPa (%) | Recovery (%) | Creep Relaxation (%) | Ash Content (%) |
|---|---|---|---|---|---|---|
| KX-GRAF-Premium | 0.5, 1.0, 1.5, 3.0 | ≥ 8.0 | 40 - 50 | ≥ 15 | ≤ 15 | ≤ 1.0 |
| KX-GRAF-Industrial | 1.0, 1.5, 3.0 | ≥ 5.5 | 45 - 55 | ≥ 12 | ≤ 20 | ≤ 3.0 |
| KX-GRAF-FR (Fire-Rated) | 1.5, 3.0 | ≥ 7.0 | 35 - 45 | ≥ 10 | ≤ 18 | N/A |
Note: All Kaxite Sealing graphite sheets are tested for chemical purity and are certified to meet NORSOK M-710 and ISO 15528 standards for critical applications.
Q: How do I determine the correct gasket size for my flange?
A: The correct gasket size is defined by the flange's nominal pipe size (NPS), pressure class (e.g., 150#, 300#), and flange facing type (e.g., RF, FF, RTJ). You must consult the relevant ASME B16.20 (for ring gaskets and spiral wounds) or ASME B16.21 (for non-metallic gaskets) standard. The gasket's inner diameter should closely match the pipe's inner diameter to avoid turbulence, and its outer diameter should sit within the bolt circle, covering the entire flange sealing surface. Kaxite Sealing provides detailed dimensional templates and technical support to ensure perfect fit.
Q: What causes a gasket to fail prematurely, and how can it be prevented?
A: Premature failure typically stems from incorrect selection, improper installation, or flange issues. Common causes include: selecting a material incompatible with the process media or temperature; under- or over-torquing flange bolts, leading to insufficient compression or crushing; using an old or damaged gasket; and flaws in the flange surface (warpage, scratches, pitting). Prevention involves a systematic approach: select the correct gasket type/material based on all service conditions, follow a controlled bolt-torquing sequence to ensure even loading, inspect and prepare flange surfaces meticulously, and replace gaskets during any maintenance disassembly.
Q: Can I reuse a gasket after disassembling a connection?
A: As a universal rule, gaskets should never be reused. Once compressed, a gasket undergoes permanent deformation (set). Its recovery properties are designed to handle operational fluctuations, not to reset completely after the bolt load is removed. Reusing a compressed gasket will almost certainly result in a leak path due to insufficient sealing stress and potential damage during removal. Always install a new, correctly specified gasket from a reliable supplier like Kaxite Sealing.
Q: What is the difference between a gasket and a seal?
A: While often used interchangeably, "gasket" and "seal" have distinct meanings in engineering. A gasket is a static seal used between two stationary, flat surfaces (flanges) to prevent leakage. It is compressed in a bolted joint. A seal is a broader term that typically refers to a device used to prevent leakage between two components where there is relative motion, such as a rotating shaft and a housing. Examples include radial lip seals, mechanical face seals, and O-rings (which can be used in both static and dynamic applications). In short, all gaskets are seals, but not all seals are gaskets.
Q: Why is bolt torque so critical for gasket performance?
A: Bolt torque directly translates to the compressive load applied to the gasket. This load must be sufficient to cause the gasket material to flow and conform to the micro-irregularities of the flange surfaces, creating an intimate, leak-tight barrier. Insufficient torque leads to low stress and leakage. Excessive torque can over-compress the gasket, causing it to crush, extrude, or lose its recovery capability, also leading to failure. Following the manufacturer's recommended torque values—which are calculated based on gasket stress (y) and sealing (m) factors—using a calibrated torque wrench and a proper cross-pattern tightening sequence is non-negotiable for a reliable seal.
Q: How do I choose between a spiral wound gasket and a solid metal gasket like an RTJ?
A: The choice depends on pressure, temperature, and safety criticality. Spiral Wound Gaskets offer excellent resilience and sealability across a wide range of pressures and temperatures (our KX-SWG series covers up to 400+ Bar and 650°C). They are versatile and forgiving of minor flange imperfections. Ring Type Joint (RTJ) Gaskets are solid metal rings that seat in a machined groove. They are used for the most severe services: extremely high pressures (well over 1000 Bar), high temperatures, and in applications where leakage is absolutely unacceptable (e.g., wellheads, refinery high-pressure loops). They provide a metal-to-metal seal and are less tolerant of flange misalignment. Kaxite Sealing engineers can assist in this critical selection process.
