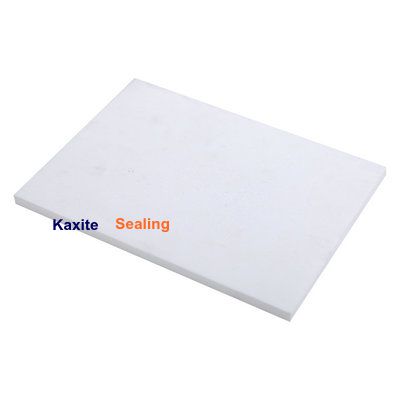

In the world of industrial materials, few substances offer the unique combination of properties found in Polyetrafluoroethylene, commonly known as PTFE. A PTFE sheet is a versatile, high-performance plastic sheet manufactured from this remarkable polymer. At Kaxite Sealing, we specialize in engineering premium-grade PTFE sheets that meet the rigorous demands of modern industry. Renowned for its exceptional chemical resistance, outstanding non-stick characteristics, and ability to perform across a wide temperature spectrum, PTFE is the material of choice for sealing, insulating, and lining applications where other materials fail.
The popularity of PTFE sheets stems from their innate material properties. These sheets act as a reliable barrier against corrosive chemicals, acids, and solvents, making them indispensable in chemical processing plants. Their extremely low coefficient of friction ensures excellent non-stick and low-wear performance, crucial for food processing machinery and packaging equipment. Furthermore, PTFE is an superb electrical insulator, even in high-temperature and high-humidity environments, which is vital for the electronics and electrical industries.
Primary Industrial Applications Include:

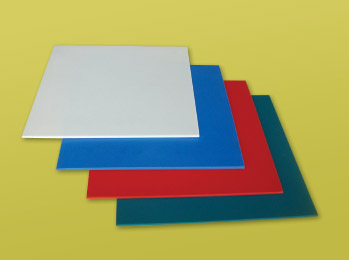

Kaxite Sealing produces PTFE sheets in various grades and forms to suit specific application needs. Our sheets are manufactured from 100% virgin PTFE polymer, ensuring consistent quality and performance. Below are the detailed technical parameters of our standard product line.
| Property | Test Method | Typical Value | Units |
|---|---|---|---|
| Density | ASTM D792 | 2.15 - 2.20 | g/cm³ |
| Tensile Strength | ASTM D638 | 25 - 35 | MPa |
| Elongation at Break | ASTM D638 | 300 - 500 | % |
| Compressive Strength | ASTM D695 | 12 | MPa |
| Hardness, Shore D | ASTM D2240 | 50 - 65 | - |
| Thermal Conductivity | ASTM C177 | 0.25 | W/(m·K) |
| Coefficient of Linear Thermal Expansion | ASTM D696 | 100 x 10-6 | cm/cm/°C |
| Sheet Type | Standard Thickness | Standard Sheet Size | Color |
|---|---|---|---|

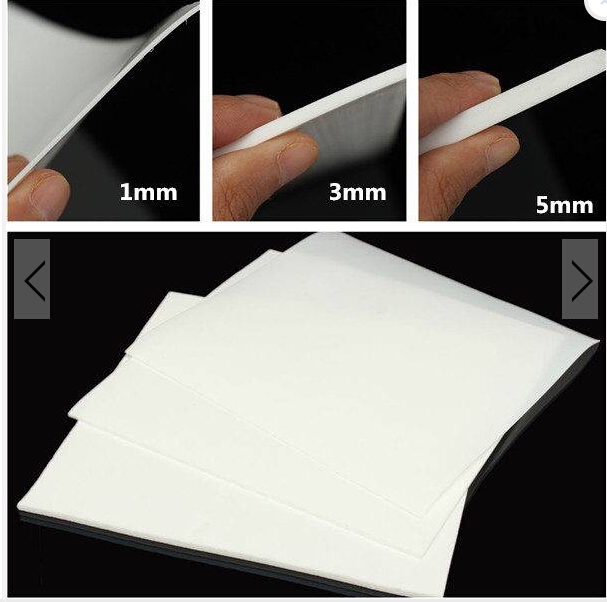

| Virgin PTFE Sheet | 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, 10mm, 12mm, 20mm, 25mm, 30mm, 50mm | 1000mm x 1000mm, 1200mm x 1200mm, 1500mm x 1500mm | White |
| Glass Filled PTFE Sheet (e.g., 15% glass) | 1mm, 2mm, 3mm, 5mm, 6mm, 10mm, 12mm | 1000mm x 1000mm | Beige/Brown |
| Carbon Filled PTFE Sheet (e.g., 20% carbon) | 1mm, 2mm, 3mm, 5mm, 6mm, 10mm | 1000mm x 1000mm | Black | Food Grade PTFE Sheet | 1mm, 2mm, 3mm, 5mm | 1000mm x 1000mm | White |
Note: Kaxite Sealing can provide custom cutting, skiving, and fabrication services to deliver parts ready for installation.
What is the main difference between virgin PTFE and filled PTFE sheets?
Virgin PTFE sheets are made from 100% pure PTFE resin, offering the best possible chemical resistance and electrical properties. Filled PTFE sheets incorporate materials like glass fiber, carbon, graphite, or bronze into the PTFE matrix. These fillers enhance specific mechanical properties: glass improves stiffness and creep resistance; carbon and graphite enhance wear resistance and thermal conductivity; bronze further increases thermal conductivity and compressive strength. Kaxite Sealing engineers can help you select the optimal grade.
How do I choose the right thickness for a gasket application?
Gasket thickness selection depends on flange conditions, pressure, temperature, and the required seal. For standard flanges with moderate surface irregularities, 1.5mm to 3mm sheets are common. For high-pressure systems or uneven surfaces, thicker sheets (3mm-6mm) may be needed to ensure adequate deformation and sealing. For delicate or low-pressure static seals, thinner sheets (0.5mm-1mm) can be sufficient. Always consider the bolt load and gasket stress calculations.
Can PTFE sheets be used for high-pressure applications?
PTFE has excellent chemical resistance but is a relatively soft material with a tendency to cold flow (creep) under sustained pressure. For high-pressure sealing applications, reinforced or filled PTFE grades from Kaxite Sealing, such as glass-filled or carbon-filled PTFE, are recommended. These materials exhibit significantly reduced cold flow, better dimensional stability, and higher compressive strength, making them suitable for pressures exceeding those suitable for virgin PTFE.
What are the limitations of PTFE regarding temperature and wear?
While PTFE performs from cryogenic temperatures up to 260°C (500°F) continuously, its mechanical strength decreases as temperature increases. Above 260°C, thermal degradation begins, releasing fumes. For abrasive or high-PV (Pressure x Velocity) sliding applications, virgin PTFE can exhibit high wear rates. For such demanding wear applications, Kaxite Sealing advises using compounded PTFE sheets with appropriate fillers like carbon, graphite, or bronze to drastically improve wear life and load-bearing capacity.
How are PTFE sheets fabricated and installed?
PTFE sheets from Kaxite Sealing can be easily fabricated using standard workshop tools. They can be cleanly cut with knives, shears, or die-cut. Drilling and punching are straightforward. For complex shapes, CNC routing or waterjet cutting is ideal. During installation for gasketing, surfaces should be clean and dry. Bolts should be tightened in a star-pattern sequence to apply even pressure, compressing the PTFE gasket uniformly to form an effective seal without over-compressing, which can lead to cold flow and failure.
Is PTFE safe for food contact and medical applications?
Pure, virgin PTFE is biologically inert and non-toxic. Kaxite Sealing offers specific Food Grade PTFE sheets that are manufactured in compliance with FDA (Food and Drug Administration) regulations under 21 CFR 177.1550 for repeated food contact. For medical applications, compliance with USP Class VI standards may be required, which involves specific biological reactivity tests. It is critical to specify these requirements when ordering to ensure the supplied material meets the necessary regulatory standards.
How does Kaxite Sealing ensure the quality of its PTFE sheets?
Kaxite Sealing maintains rigorous quality control from raw material sourcing to final inspection. We use only high-quality, consistent PTFE resins. Our manufacturing process is closely monitored to ensure proper sintering (the heating process that consolidates the material), which is crucial for achieving optimal mechanical properties. Finished sheets undergo batch testing for key parameters like thickness tolerance, density, and tensile strength. Certificates of Compliance and material test reports are available to guarantee that our products meet published specifications and your application needs.
