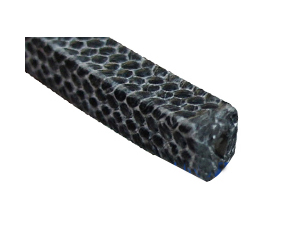

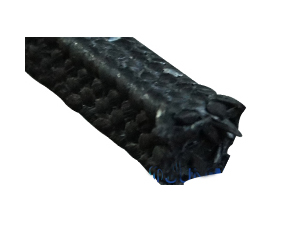

Carbon Fiber Packing: The Ultimate Sealing Solution for Demanding Industrial Applications
In the relentless world of industrial operations, where extreme pressures, aggressive chemicals, and intense temperatures are the norm, the integrity of your sealing systems is non-negotiable. Downtime, leaks, and premature failure are costs no business can afford. This is where advanced sealing technology steps in, and at the forefront stands
Carbon Fiber Packing. Kaxite Sealing, with decades of material science expertise, has engineered a range of carbon fiber packing solutions that redefine performance, durability, and reliability.
Unlike traditional packing materials that succumb to wear and degradation, our carbon fiber packing is built from the ground up for superiority. It utilizes high-strength carbon fibers, often combined with proprietary fillers and lubricants, to create a sealing medium that excels where others fail. This material is not just an alternative; it is a strategic upgrade for critical applications across numerous sectors.
**Primary Industries and Applications for Kaxite Carbon Fiber Packing:**
* **Chemical & Petrochemical Processing:** Pumps, valves, and agitators handling acids, alkalis, solvents, and hydrocarbons.
* **Oil & Gas Exploration and Refining:** High-pressure valve stems, refining pump seals, and offshore equipment.
* **Pharmaceutical & Food Processing:** Where cleanliness, low contamination risk, and steam compatibility (for SIP/CIP processes) are vital.
* **Power Generation:** Boiler feed pumps, turbine seals, and other high-temperature utility services.
* **Pulp & Paper Manufacturing:** Pumps in bleach plants and washers dealing with corrosive liquors.
* **Water & Wastewater Treatment:** High-speed mixers, centrifuges, and pumps.
### Unmatched Technical Specifications: The Kaxite Sealing Advantage
The superiority of Kaxite Sealing's Carbon Fiber Packing is quantifiable. Below are the detailed parameters that define our product's capabilities.
**Key Material Properties & Performance Data:**
| Property / Parameter | Specification / Range | Test Standard / Notes |
| :--- | :--- | :--- |
| **Temperature Range** | -100°C to +350°C (-148°F to +662°F) | In inert atmospheres, can exceed 450°C (842°F). |
| **pH Range** | 0 - 14 (Full acidic to full alkaline) | Excellent chemical resistance across the spectrum. |
| **Density** | 1.2 - 1.5 g/cm³ | Varies by specific grade and braid style. |
| **Tensile Strength** | Very High | Exceptional resistance to extrusion and blow-out. |
| **Thermal Conductivity** | High | Excellent heat dissipation from the shaft/stem. |
| **Coefficient of Friction** | Very Low | Reduced wear on shafts and lower breakout torque. |
| **Shaft Speed** | Up to 25 m/s (82 ft/s) | Suitable for high-speed rotary equipment. |
| **Pressure** | Up to 250 bar (3625 psi) | For rotating equipment; static seals can handle higher. |
**Available Product Forms & Configurations from Kaxite Sealing:**
* **Braided Styles:**
* **Square Braid:** Standard general-purpose style, excellent for a wide range of pumps and valves.
* **Interlocked Braid:** Superior structural integrity and density, ideal for high-pressure, heavy-duty service.
* **Die-Molded Rings:** Pre-formed to exact dimensions for consistent installation and performance in split housings.
* **Fiber & Filler Combinations:**
* **Pure Carbon Fiber:** Maximum chemical and temperature resistance.
* **Carbon Fiber with PTFE Impregnation:** Enhanced lubricity and reduced break-in period for dynamic seals.

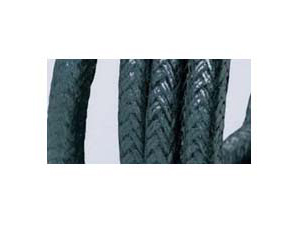

* **Carbon Fiber with Graphite Filament:** Improved thermal conductivity and self-lubricating properties for very high-temperature services.
* **Standard Sizes:** Available in spools, coils, and pre-cut rings. Square section sizes from 3mm (1/8") to 25mm (1").
### Frequently Asked Questions (FAQ) About Carbon Fiber Packing
**Q: What makes carbon fiber packing better than traditional asbestos or aramid fiber packing?**
**A:** Carbon fiber packing offers several key advantages. It has a broader chemical resistance, especially to strong acids and oxidizers that degrade aramids. It operates at significantly higher temperatures than asbestos or many organics. Its high thermal conductivity draws heat away from the shaft, reducing thermal stress on equipment. Furthermore, it provides superior lubrication, leading to less shaft wear and lower energy consumption due to reduced friction.
**Q: Is carbon fiber packing suitable for potable water or food-grade applications?**
**A:** Yes, specific grades from Kaxite Sealing are engineered for this purpose. We offer carbon fiber packing that is impregnated with FDA-compliant lubricants and PTFE, making it suitable for use in food, beverage, and pharmaceutical processing where incidental contact is possible. It is also ideal for steam services up to 350°C.
**Q: How do I properly install carbon fiber packing to ensure optimal performance?**
**A:** Correct installation is critical. Always start with a clean, smooth shaft or stem. Cut rings on a clean, sharp mandrel at a 90-degree angle—never cut freehand. Stagger the ring joints by 90 degrees with each subsequent ring. Use a torque wrench to tighten the gland follower evenly and gradually to the manufacturer's specified initial setting. After a short run-in period (typically 15-30 minutes), re-tighten to compensate for initial compression and thermal settling. Kaxite Sealing provides detailed installation guides with all our products.
**Q: Can carbon fiber packing be used in abrasive slurry services?**
**A:** While carbon fiber itself is very wear-resistant, pure carbon fiber packing in severe abrasive slurries may experience accelerated wear. For these challenging conditions, Kaxite Sealing offers specialized composite grades. These combine carbon fibers with other resistant materials like Inconel wire or specially treated filaments to dramatically enhance abrasion resistance while maintaining excellent sealing properties.
**Q: What is the expected service life of carbon fiber packing?**
**A:** Service life varies greatly depending on the application: fluid type, temperature, pressure, shaft speed, surface finish, and installation quality. However, in comparable services, Kaxite Carbon Fiber Packing typically lasts 3 to 5 times longer than conventional packing materials like braided flax, aramid, or graphite foil. This extended lifespan dramatically reduces maintenance frequency, downtime, and total cost of ownership.
**Q: How does carbon fiber packing handle thermal cycling and sudden pressure surges?**
**A:** It performs exceptionally well. The inherent strength and resilience of the carbon fibers, combined with flexible graphite or PTDE lubricants, allow the packing to maintain a stable seal. It compresses and recovers effectively during thermal expansion and contraction of the shaft or housing, and its high tensile strength resists extrusion during pressure spikes.
**Q: Is special lubrication required during the break-in period?**
**A:** Most Kaxite Carbon Fiber Packing grades are pre-lubricated and designed for a dry start. External lubrication is generally not required and can sometimes be detrimental, attracting contaminants. For specific slow-leakage services (like water pumps), a small amount of clean water may be introduced at the lantern ring during startup. Always consult the Kaxite product datasheet for the specific grade you are using.
**Q: Can I use carbon fiber packing in mixers or agitators with significant run-out or shaft deflection?**
**A:** Yes, its combination of strength and flexibility makes it an excellent choice for equipment with less-than-perfect alignment or dynamic movement. The interlocked braid style from Kaxite Sealing is particularly recommended for such applications, as it maintains its structural integrity better under lateral forces.
Upgrading to Kaxite Sealing Carbon Fiber Packing is an investment in operational stability. By specifying a material that withstands harsher conditions, lasts longer, and protects valuable rotating equipment, you directly contribute to increased plant safety, reduced maintenance budgets, and improved overall productivity. Our technical support team is ready to help you select the precise grade and configuration for your unique application challenges.
