Manual Vertical Big Size Winding Machine For SWG

Manual Vertical Big Size Winding Machine For SWG

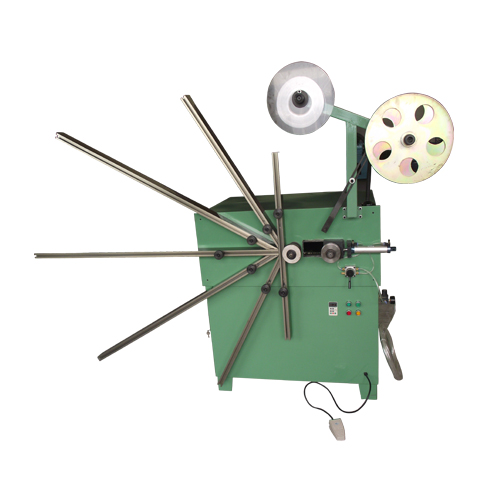

Kaxite Sealing introduces the Manual Vertical Big Size Winding Machine For SWG, a robust solution for efficient wire winding in industrial applications. Crafted with durable materials and ergonomic design, it ensures precise winding for large sizes, delivering reliability and ease-of-use. Ideal for technicians and manufacturers, this machine simplifies complex tasks, enhancing productivity and reducing manual effort. Its vertical orientation maximizes space and offers superior control compared to standard models. Experience seamless operation and exceptional performance with Kaxite Sealing's commitment to quality—get yours today to transform your winding workflow!
Specification as following:
STYLE KXT E1200 Vertical big size winding machine
Producing ability spiral wound gasket with or without inner ring
SWG thickness 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD 1600mm
Minimum gasket ID 200mm
Gasket OD tolerance ±0.8mm
Total power 2.2kw
Spindle motor power 1.5kw
Frequency Converter 2.2G
Power supply voltage 380V/220V for option, 3 phases
linear speed 0-800mm/s
Air compressor 0.6-0.8 MPA
Machine measurement 2200*850*1800mm
Machine net weight 220 kg
Hot Tags: Large Winding Machine, Manual Vertical Winding Equipment, SWG Wire Winding Machine
