PTFE Extruded Tubing

With professional PTFE Extruded Tubing factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Extruded Tubing manufacturers and suppliers.


Send Inquiry


Description
[ Features ]

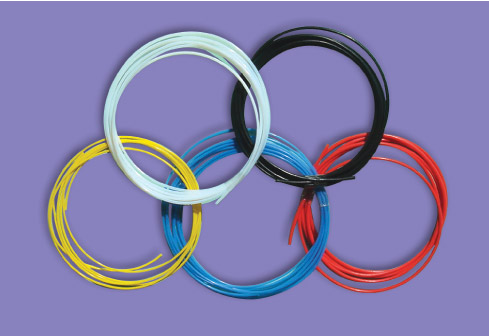

PTFE extruded tubing is manufactured by high pressure PTFE dispense resin mixed with additive, it is extruded and sintered. According to different demands, the tubing could be opaque or translucent.
PTFE is well known for its chemical resistance, not aging, non stick, self-lubrication, insulation and wide working temperature range from -180 to +260. Because of these excellent properties, PTFE has a wide application in fields of chemical, mechanical, electronics, medical and aviation, etc.
[ Main properties ]

Properties

Unit

Result

Apparent density
g/cm3
2.10-2.20

Tensile strength (min)

MPa

20

Ultimate elongation (min)

%

200
Residual Lubricant Content (max)
%
0.5
Dialectric Strength (min)
KV/mm
10


[ Applications ]
Used as wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc.
[ Specifications ]
ODXID(mm)
Tolerance (mm)
ODXID(mm)
Tolerance (mm)
Φ0.8X0.4
0.08
Φ12X10
0.2
Φ1X0.5
0.08
Φ14X12
0.2
Φ2X1
0.08
Φ16X14
0.2
Φ4X2
0.1
Φ18X16
0.3
Φ6X4
0.1
Φ20X18
0.3
Φ8X6
0.1
Φ22X20
0.3
Φ10X8
0.1
Φ24X21
0.3
