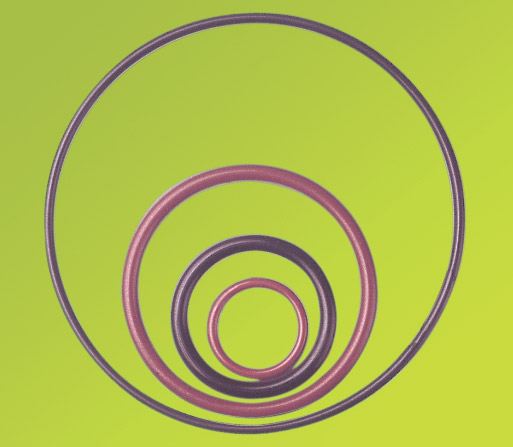

Compound O-Ring

Kaxite is one of the leading China Compound O-Ring suppliers and manufacturers, and with productive factory, welcome to wholesale Compound O-Ring products from us.


Send Inquiry


Description
[ Features ]

Compound O-Ring adopts special rubber resisting high temprature, F+ plastic and special engineering to compound this sealing product. It not only has low contraction permanent set functions of rubber O-ring, but also resist heat, cold, oil, friction, chemical corrusion and other performances. It can be used in all kind of dynamical seal and static seal widely, meanwhile can replace all traditional rubber and plastic o-ring.

[ Main properties ]
We can produce other no-nominal compound o-ring.
Property
Unit

A
B
C
Normal Ckonditions
Hardness
JIS Hs
70-90
70-90
60-75
Elongation,min
%
60
60
80
Tensile Strength,min
MPa
16
16
16
Compressibility
%
50-60
50-60
60-75
Recovery
%
>85
>85
>70
Permanentset
%
<10
<10
<20
230X24h hot air ageing
Change of hardness,max.
JIS Hs
-5-+5
-5-+5
-5-+5
Change of tensile strength,max.
%
-15
-15
-15
Change of elongation,max.
%
-20
-20
-20
Compression permanentset
175X70h
%
20
20
30
Colour


blown
black
red
Applications
Temperature Limits
-20-250
-20-200
-50-200
Pressure Limits
MPa
0-35
Strong caustics,moderate acids,chlorine,gases,wter,steam,hydrocarbons,hydrogen and aluminum fluoride except element fluorine and fusion sodium.
[ Specifications ]
Setion Diameter
Nominal Inside Diameter
Setion Diameter
Nominal Inside Diameter
1.800.10
200.10-3001.60
6.000.13
800.80-4002.00
2.600.10
200.15-3001.60
6.300.14
800.80-4002.00
3.550.10
250.15-3001.60
7.000.14
1000.65-10004.00
4.000.10
400.20-3001.60
8.000.16
1101.00-20004.00
4.600.10
400.20-3001.60
10.000.18
2001.50-20006.00
5.000.10
400.25-4001.80
12.000.18
4001.50-6.00
5.300.13
600.30-4001.80
14.000.18
4001.50-6.00
5.500.13
600.30-4001.80
16.000.18
4001.50-6.00
5.700.13
600.30-4002.00
