Products

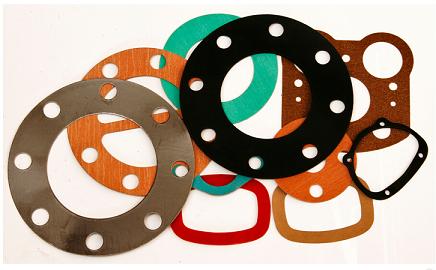

Asbestos Free Rubber Gasket

Synthetic Fiber gasket cut from Synthetic Fiber rubber sheet. Suitable for use as an oil-resistant jointing medium for heat installations and engine sealing


Send Inquiry


Description

Non-asbestos Series MPTFE Series

Kaxite® line offers a variety of elastomers to excel in a wide range of services.

Modified PTFE line offers good resistance to cold flow (creep), high pressure service, and good chemical compatibility.

KXT® Style 2200

Garlock Blue-Gard 3000
KXT 2000 Datasheet PDF

Style 2000

Aramid fibers with a nitrile binder.

Benefits

Excellent sealability

Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

Media

Water

Aliphatic hydrocarbons

Oils

Gasoline

KXT 2000 Specifications
Min. Temperature: -100oF
Max Temperature: 400oF
Min. Pressure: 1000 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

KXT® Style 2200

Garlock Blue-Gard 3200
KXT 2200 Datasheet PDF

Style 2200

Aramid fibers with a nitrile binder.

Benefits

Excellent sealability

Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

Media

Water

Saturated steam

Inert gases (meets MIL-G-24696B)

KXT 2200 Specifications
Min. Temperature: -100oF
Max Temperature: 400oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

KXT® Style 2300

Garlock Blue-Gard 3300
KXT 2300 Datasheet PDF

Style 2300

Aramid fibers with a  neoprene binder.

Benefits

Excellent sealability

Unique blend of aramid fibers, fillers and a SBR rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

Cuts operational costs through reduced: - Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

Media

Water

Saturated steam

Refrigerants

Oils

Fuels

KXT 2300 Specifications
Min. Temperature: -100oF
Max Temperature: 400oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

MPTFE® Style 2504

Garlock Gylon 3504
MPTFE 2504 Datasheet PDF

Style 2504 Blue

PTFE with glass microspheres.

Benefits

Tighter Seal

Improved performance over conventional PTFE

Reduced product loss and emissions

Reduced creep relaxation

Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets

Excellent bolt torque retention

Chemical resistance

Withstands a wide range of chemicals for extended service life in a wide variety of applications

Cost savings

Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste

Largest sheet sizes

Offers some of the largest sheet sizes in the industry

Improved material utilization reduces waste

Branding and color coding

Easy identification of superior MPTFE® products

Reduces misapplication and use of unauthorized, inferior substitutes

Media

Moderate concentrations of acids and some caustics

Hydrocarbons

Solvents

Water

Refrigerants

Cryogenics, hydrogen peroxide

MPTFE 2504 Specifications
Min. Temperature: -450oF
Max Temperature: 500oF
Min. Pressure: 800 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

MPTFE® Style 2510

Garlock Glyon 3510
MPTFE 2510 Datasheet PDF

Style 2510 Off-White

PTFE with barium sulfate filler.

Benefits

Tighter Seal

Improved performance over conventional PTFE

Reduced product loss and emissions

Reduced creep relaxation

Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets

Excellent bolt torque retention

Chemical resistance

Withstands a wide range of chemicals for extended service life in a wide variety of applications

Cost savings

Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste

Largest sheet sizes

Offers some of the largest sheet sizes in the industry

Improved material utilization reduces waste

Branding and color coding

Easy identification of superior MPTFE® products

Reduces misapplication and use of unauthorized, inferior substitutes

Media

Strong caustics

Moderate acids

Chlorine

Gases

Water

Steam

Hydrocarbons

Cryogenics and aluminum fluoride

MPTFE 2510 Specifications
Min. Temperature: -450oF
Max Temperature: 500oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

MPTFE® Style 2545

Garlock Gylon 3545
MPTFE  2545 Datasheet PDF

Style 2545

PTFE Gasketing with aluminosilicate microspheres

Benefits

Tighter Seal

Highly compressible PTFE outer layers seal under low bolt load-suitable for many non-metallic flanges

Compressible layers conform to surface irregularities, especially on warped, pitted or scratched flanges

Rigid PTFE core reduces cold flow and creep normally associated with conventional PTFE gaskets

Excellent chemical compatibility

Pure PTFE withstands a wide range of chemicals

Easy to cut and install

Soft PTFE can be cut easily from larger sheets, reducing inventory costs and expensive downtime

Rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas

Media

Strong caustics

Strong caustics

Strong acids

Hydrocarbons

Chlorine

Cryogenics

Glasslined equipment

Plastic piping

Low bolt load applications

MPTFE 2545 Specifications
Min. Temperature: -450oF
Max Temperature: 500oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)
