Milling the outer edge of spiral wound gasket inner ring into V shape
Specification as following:: | |
STYLE |

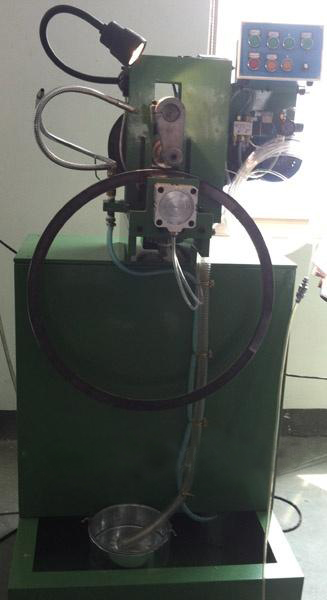

KXT E2000N Angling machine for SWG Inner ring |
Grooving ring thickness | 2-4mm |
Maximum ring OD | 1000mm |
Minimum ring ID | 250mm |
Total power | 2.2kw |
Spindle motor power | 0.55kw |
Feed moter power | 0.04kw |
Power supply | 380V/220V for option, 3 phases |
linear speed | 0-25 mm/s |
Air compressore | 0.6-0.8Mpa |
Machine measurement | 950*900*2000mm |
Machine net weight | 300kg |
